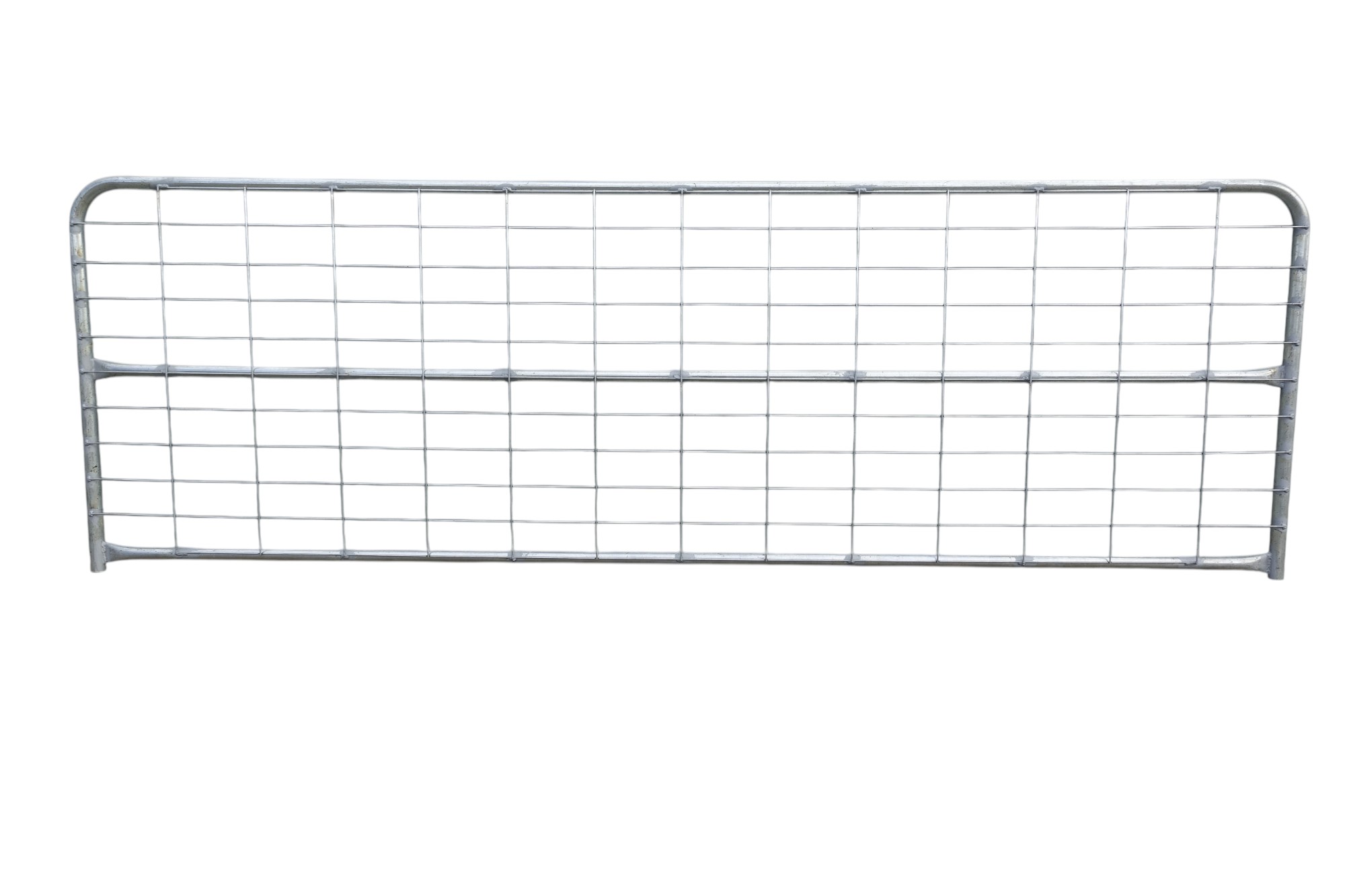

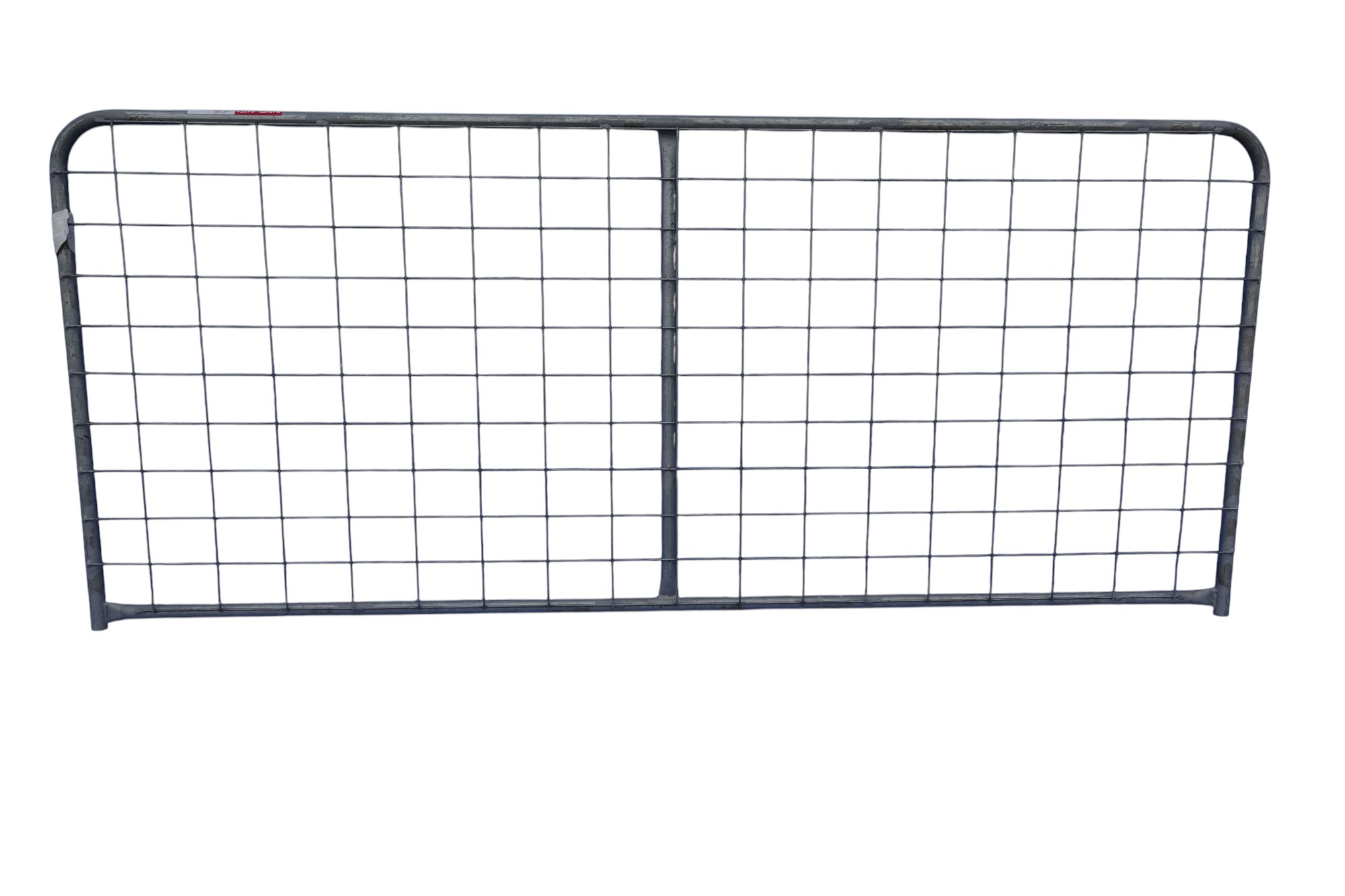

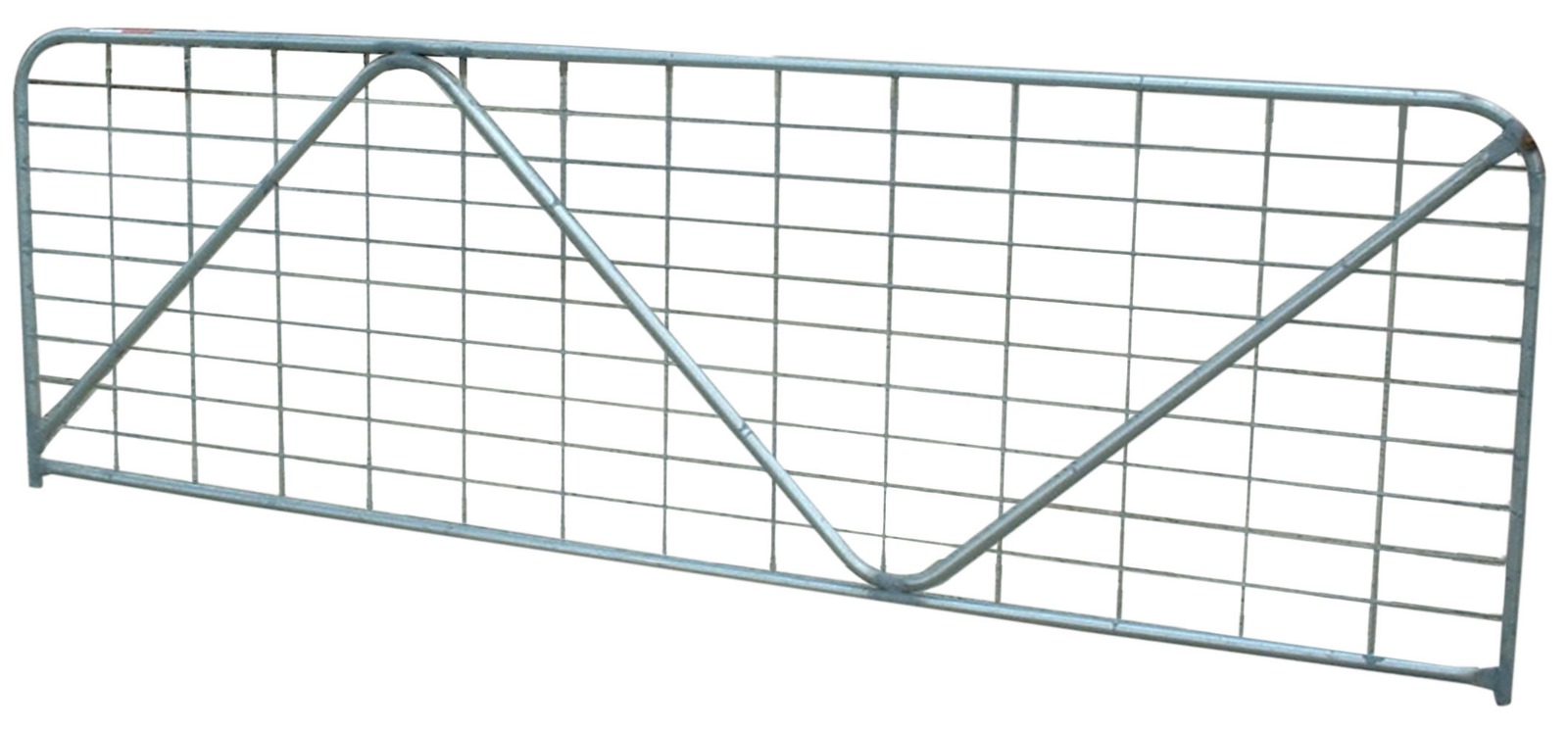

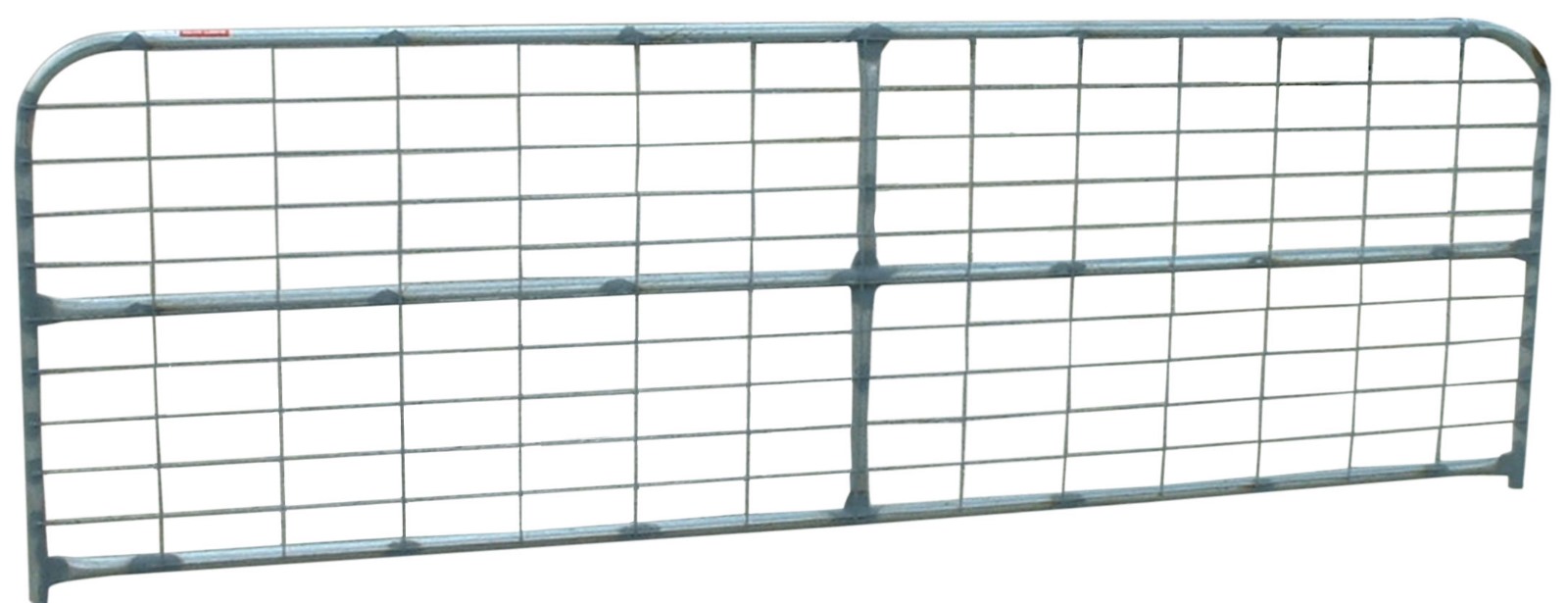

Mesh:   5mm gal wire
             100mmx 250mm approx.
Frame:  High tensile 25mm N.B.
              Grade 350 galvanised frame
Stay:     25mm

Non-Standard sizes can be made on request.

Mesh:   5mm gal wire
             Framing 100mm x 250mm approx.
Frame: High tensile 25mm N.B.
             Grade 350 galvanised frame
Stay:    25mm

Non-Standard sizes can be made on request.

Mesh:   5mm gal wire
             Framing100mm x 250mm approx
Frame: High tensile 32mm N.B.
            Grade 350 galvanized frame
Stay:    32mm N.B.grade

Non-Standard sizes can be made on request.

Mesh:   5mm gal wire
             Framing 100mm x 250mm approx
Frame: High tensile 32mm N.B.
            Grade 350 galvanized frame
Stay:    32mm N.B.grade

Non-Standard sizes can be made on request.

Mesh:   5mm gal wire
             Framing 100mm x 250mm approx
Frame: High tensile 32mm N.B.
            Grade 350 galvanized frame
Stay:    32mm N.B.grade

Non-Standard sizes can be made on request.

Mesh:   4mm gal wire
Frame: High tensile 32mm N.B.
             Grade350 galvanised frame
Stay:    25mm
Sizes:  50mm x 75mm, 50mm x 50mm

Non-Standard sizes can be made on request.

Mesh:  5mm gal wire
           100mmx 150mm approx.
Frame: High tensile 25mm N.B.
            Grade 350 galvanized frame
Stay:   25mm

Non-Standard sizes can be made on request.

Mesh:  5mmgal wire 250mm x 100mm (Top 600mm section)
           5mmgal wire 250mm x 50mm (Bottom 450mm section)
Frame: High tensile 25mm N.B. grade 350 galvanized frame
Stay:    25mm

Non-Standard sizes can be made on request.

Frame:  High tensile 32mm N.B. grade 350 galvanized frame
Height: 1.4m
              6 bar
Stay:     50mm galvanized strap
Latch :  Welded on as standard

Non-Standard sizes can be made on request.

Frame:   High tensile 20mm N.B.
               Grade 350 galvanized frame
Stay:      50mm galvanized strap
Spacings:  Approx. 130mm, 150mm, 180mm, 200mm and 230mm                                    From bottom upwards (smallest spacing at bottom)

Non-Standard sizes can be made on request.

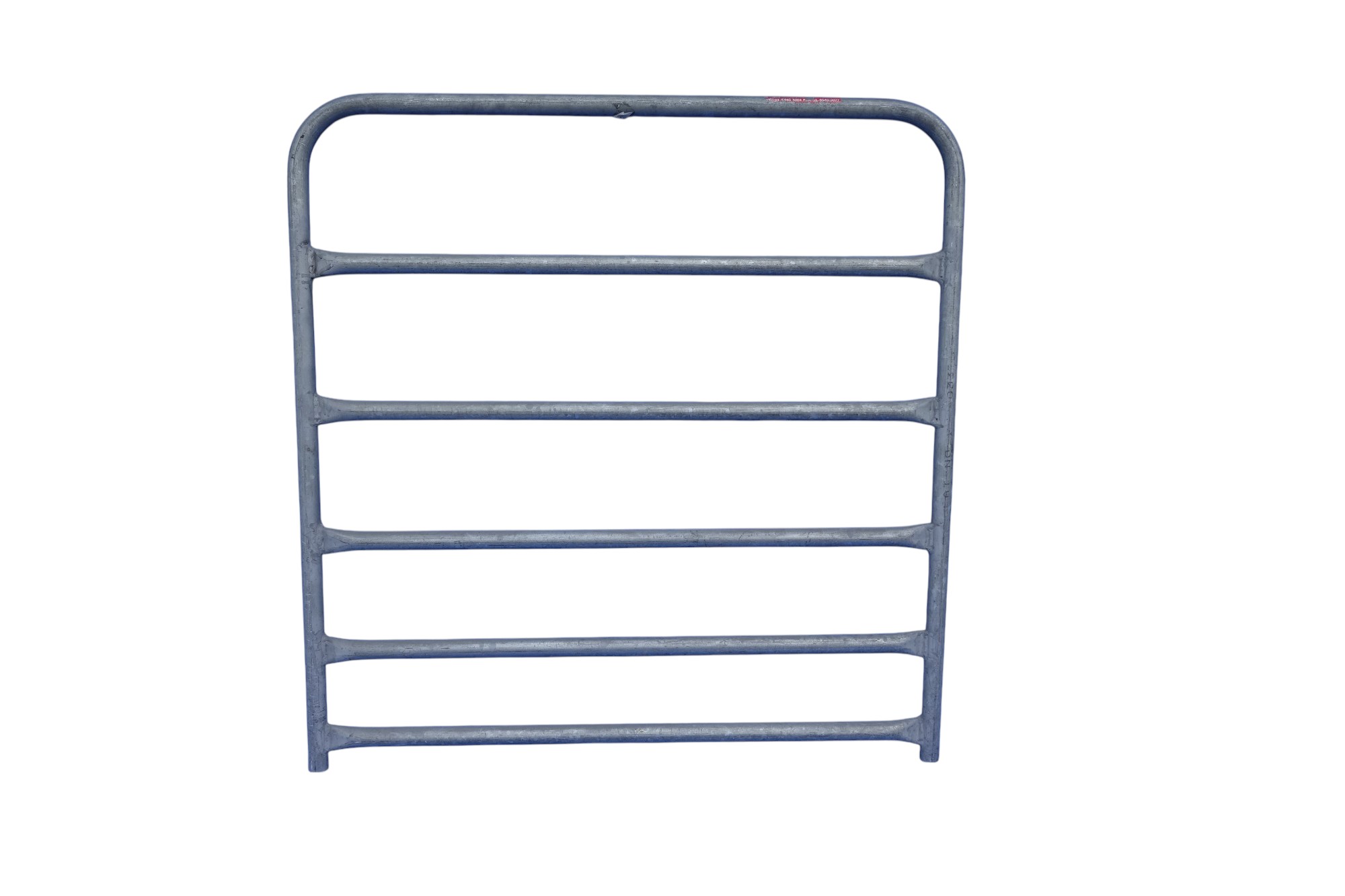

Frame:  5 bar high tensile 32mm N.B. grade 350 galvanized frame
Height: 1.5m
Stay:     50mmgalvanized strap
Uses:    Allows for uneven ground; hinged access; square pens; round yards;               and odd shaped enclosures.

Non-Standard sizes can be made on request.

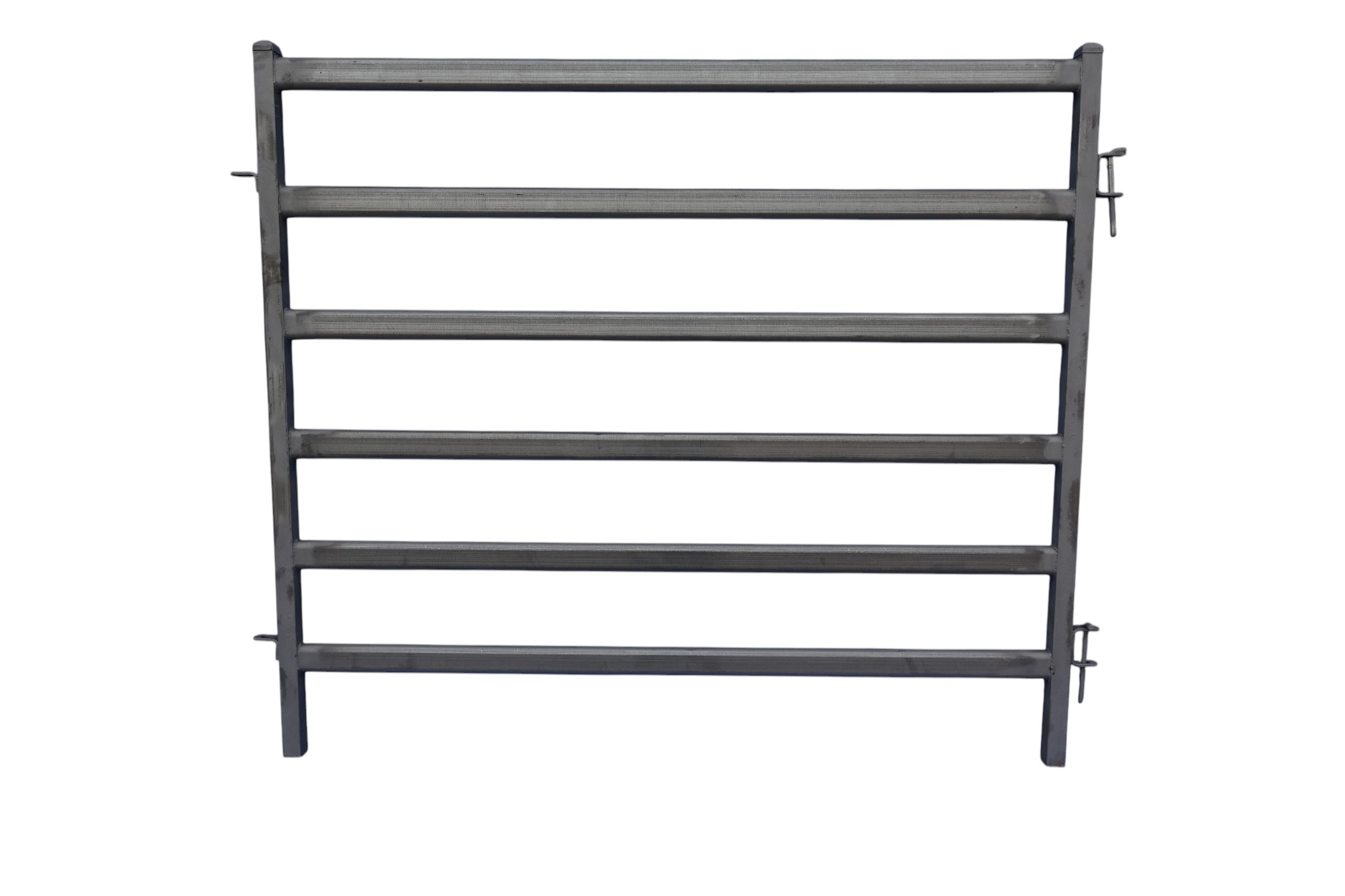

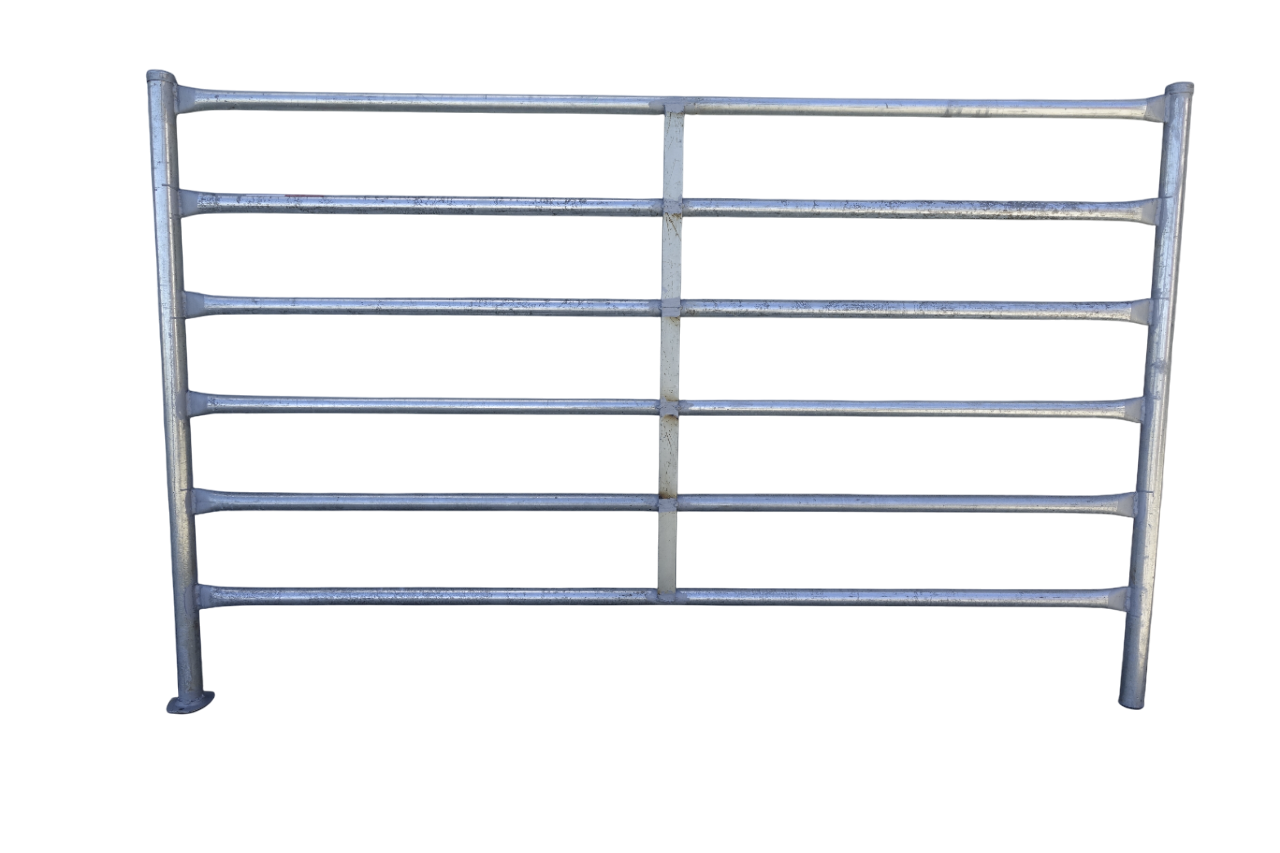

Panel
Uprights : 50-50 RHS gal
Bars        :  6-bar oval gal rail
                  80mm x 40mm x 1.6mm
Dimensions: 2.1m wide X 1.8m high
Pins       : 2 per panel
Uses     : suitable for cattle and horses
*Sold in packs of 70 or broken packs

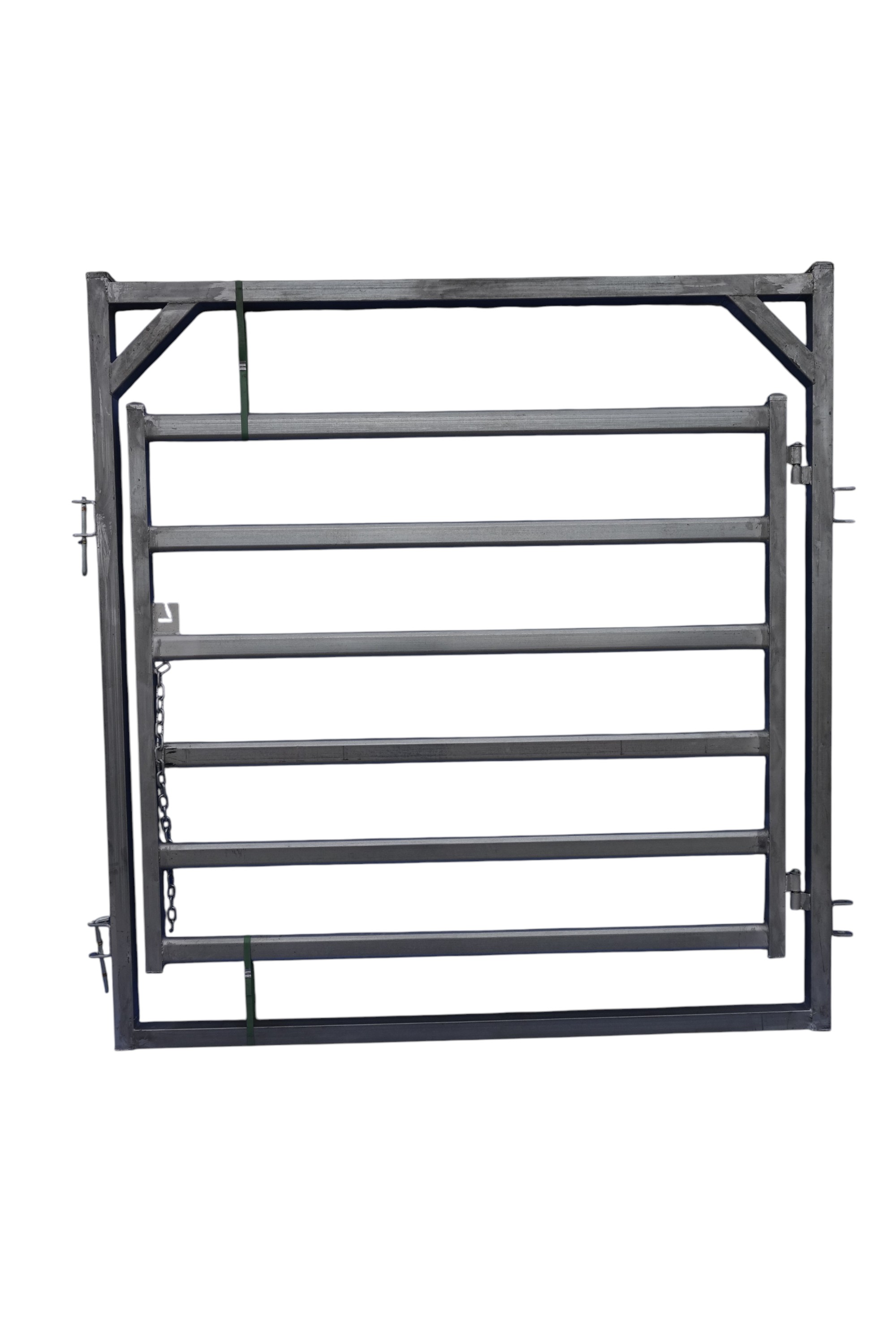

Door
Frame : 2.1m wide X 2.2m high
             60-60 RHS gal
Door   : 50-50 RHS gal uprights
             6-baroval gal rail
             1.8mwide X 1.8m high
Pins    : 2 per panel
Use    : suitable for cattle and horses



Non-Standard sizes can be made on request.

Frame: Height 2m;end upright posts 1 x 80mm & 1 x 50mm              N.B.grade 350 galvanized
            Joined by a clamp on top of gate – base set into             concrete
Bars:  Horizontal 6 bar; high tensile 32mm N.B.
Stay:  50mm galvanized strap



Non-Standard sizes can be made on request.

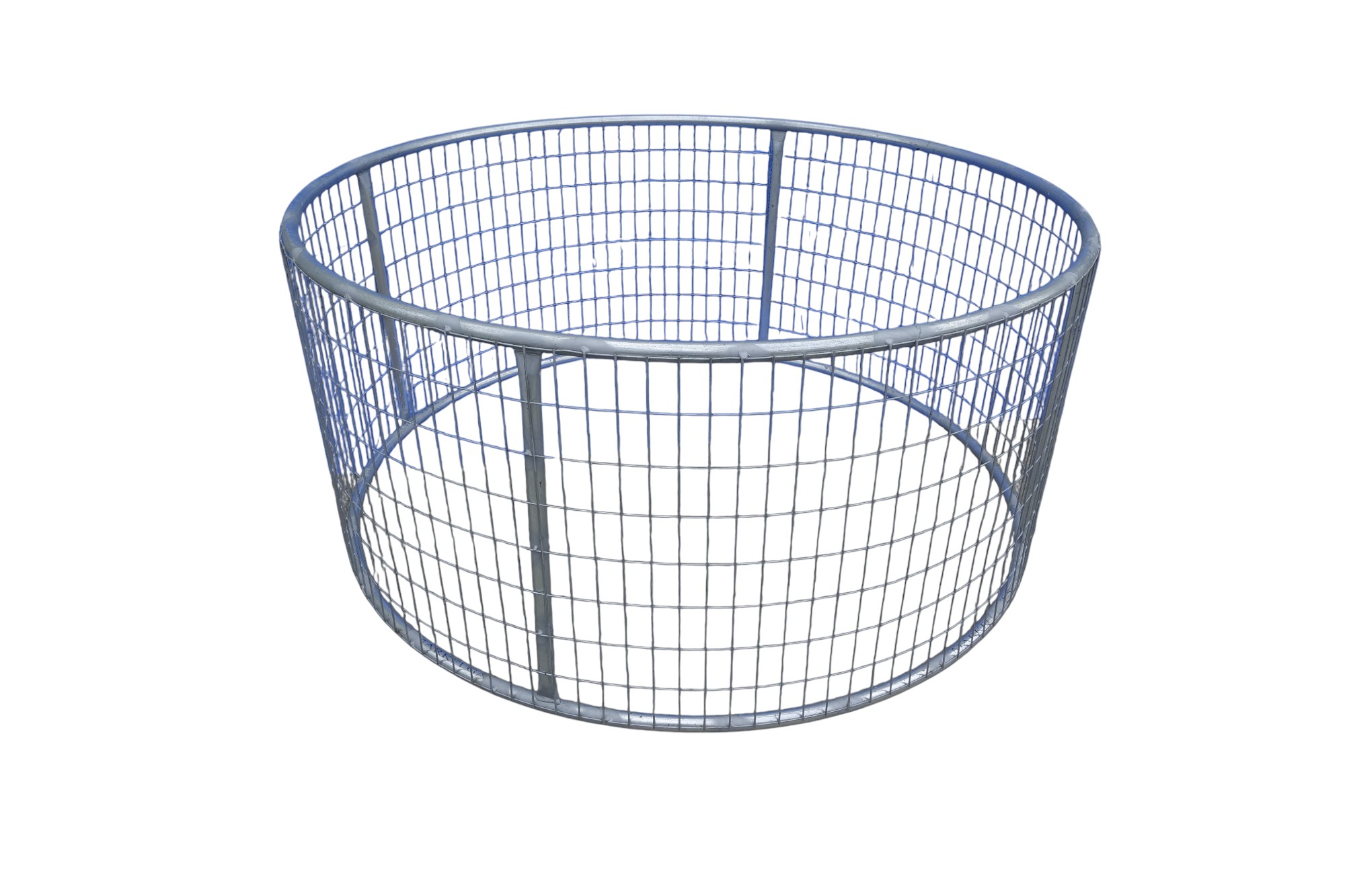

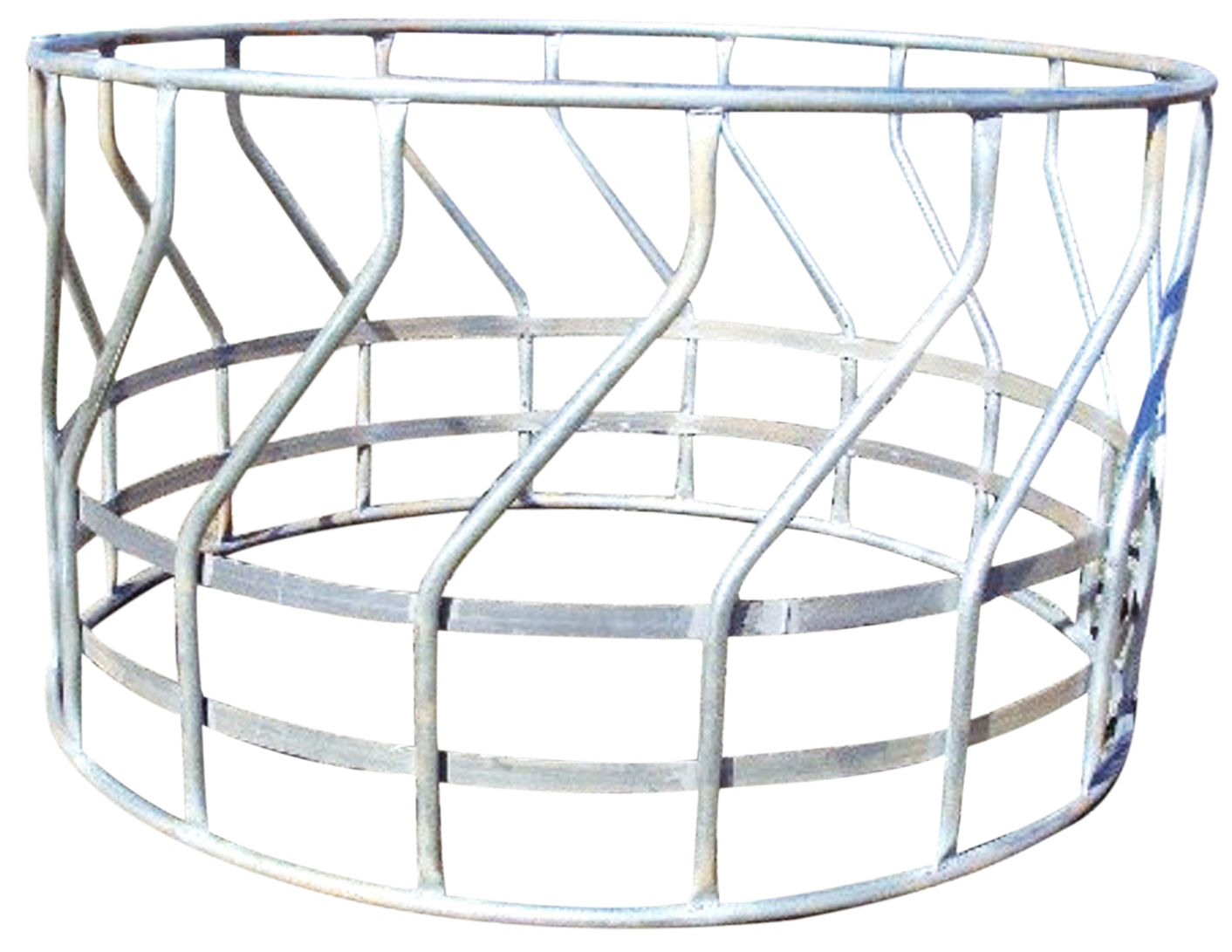

Rings:   2 rings; 1 at top, 1 at bottom
High tensile 25mm N.B. grade 350 galvanized pipe
Straps:   2 middle straps
               50mm X 4mm galvanized strap
Uprights: High tensile 25mm N.B. grade 350 galvanized pipe
Sizes(diameter)  :  1.8m,  2.0m,   2.1m

*Sold as is or with skirt


Non-Standard sizes can be made on request.

Rings: High tensile 20mm and 25mm N.B. grade 350 galvanized pipe; 2.6mm wall
Uprights:  High tensile 20mm N.B. grade 350 galvanized pipe
Sizes (diameter) : 1.8m,  2.1m
‍
*Sold as if or with skirt


Non-Standard sizes can be made on request.

Rings:   2 rings; 1 at top, 1 at bottom
High tensile 25mm N.B. grade 350 galvanized pipe
Mesh :  50mm X 75mm galvanized mesh
Uprights: High tensile 25mm N.B. grade 350 galvanized pipe
Sizes(diameter):  1.8m,  2.0m,   2.1m
Height :  850mm



Non-Standard sizes can be made on request.

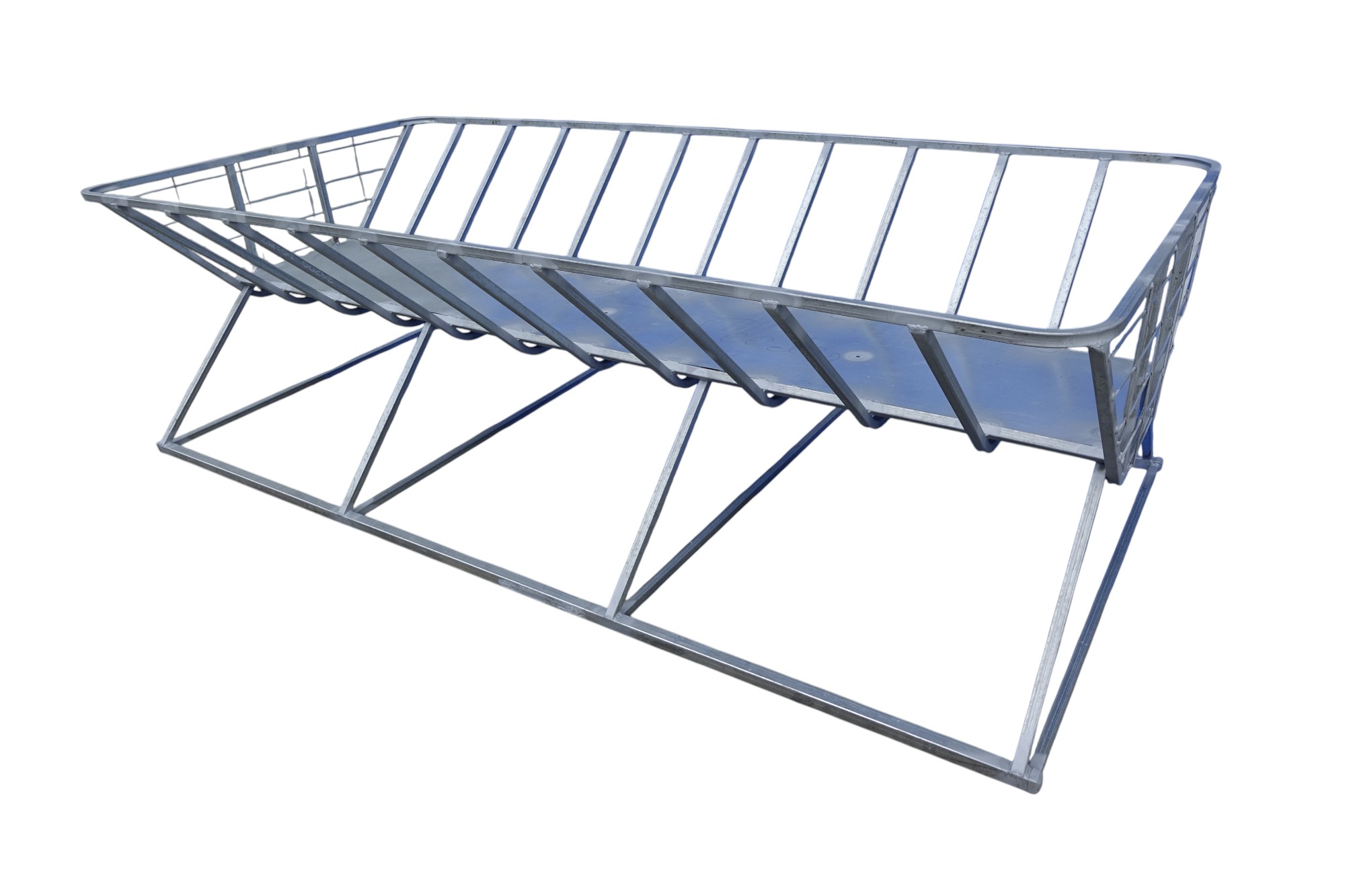

Top /bottom : High tensile 25mm and 35mm galvanized RHS square;
2.0mm wall
Approx. 1.3m X 1.45m X 0.95m high (small)
Approx. 3m X 1.45m X 0.95m high (large)
Fits 1 large round bale on side
Rounded edges at top, tin sheet in middle

Available in Small & Large (fits 2 round bales)

Non-Standard sizes can be made on request.

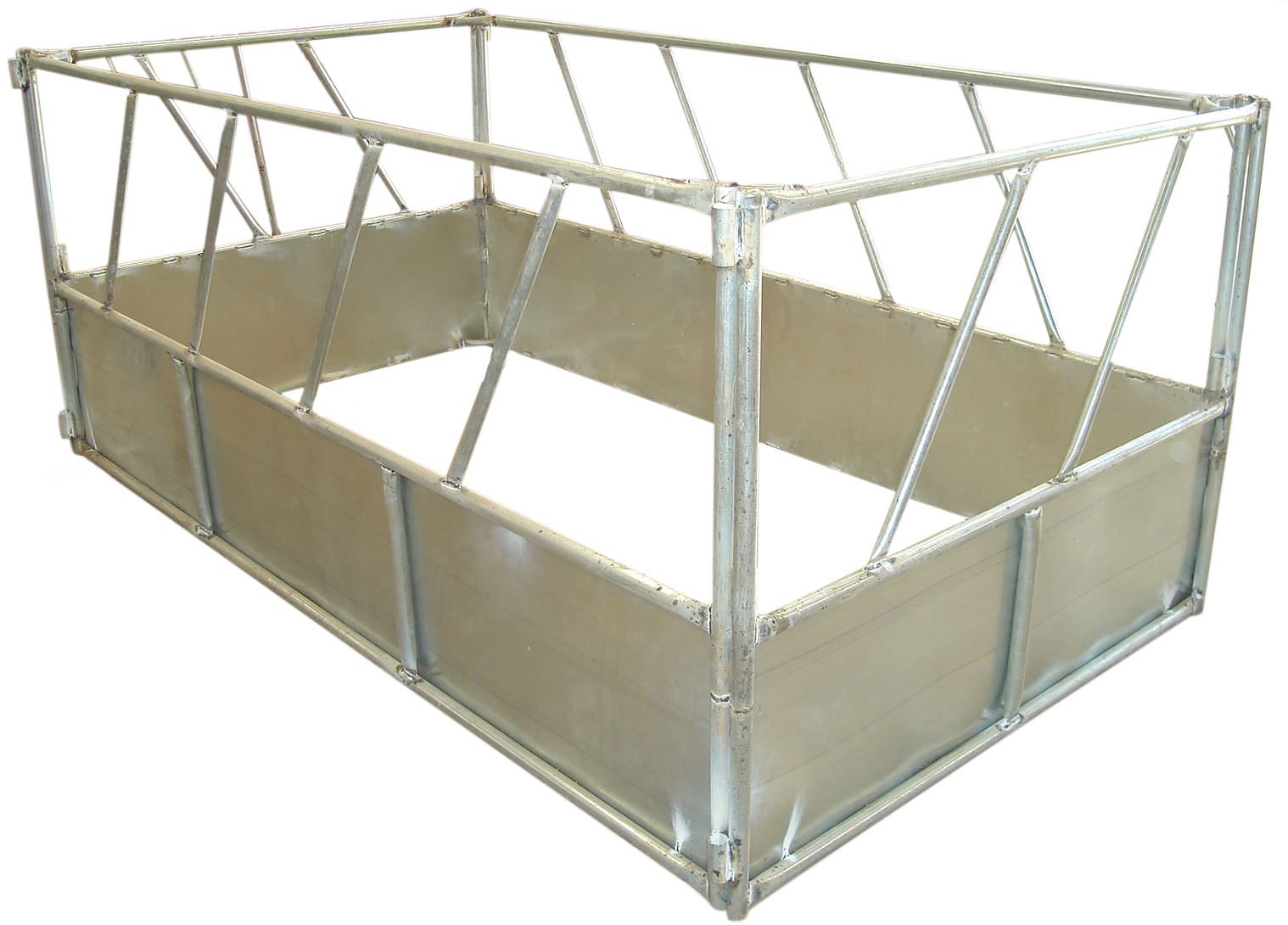

Top /bottom : High tensile 25mm  N.B grade 350gal pipe;                2.6mm wall
Skirt      : Hi tensile steel plate
1.15mm X 500mmhi
Uprights: Hi tensile 20mm N.B.
Grade 350 gal pipe
Approx  2.7m X 1.5m X 1m high
Fits one large square bale
Extra bracing on sides and corners



Non-Standard sizes can be made on request.

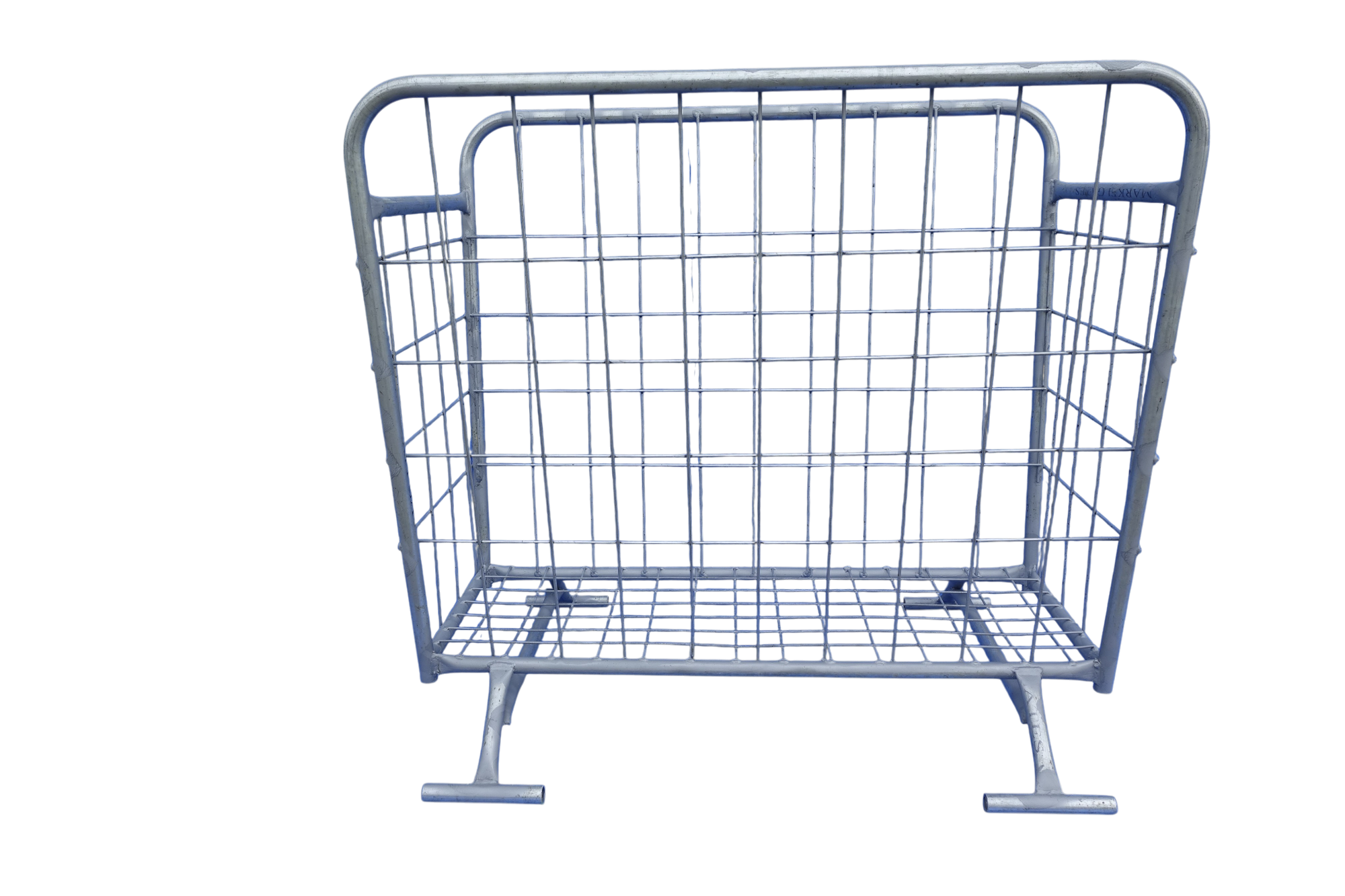

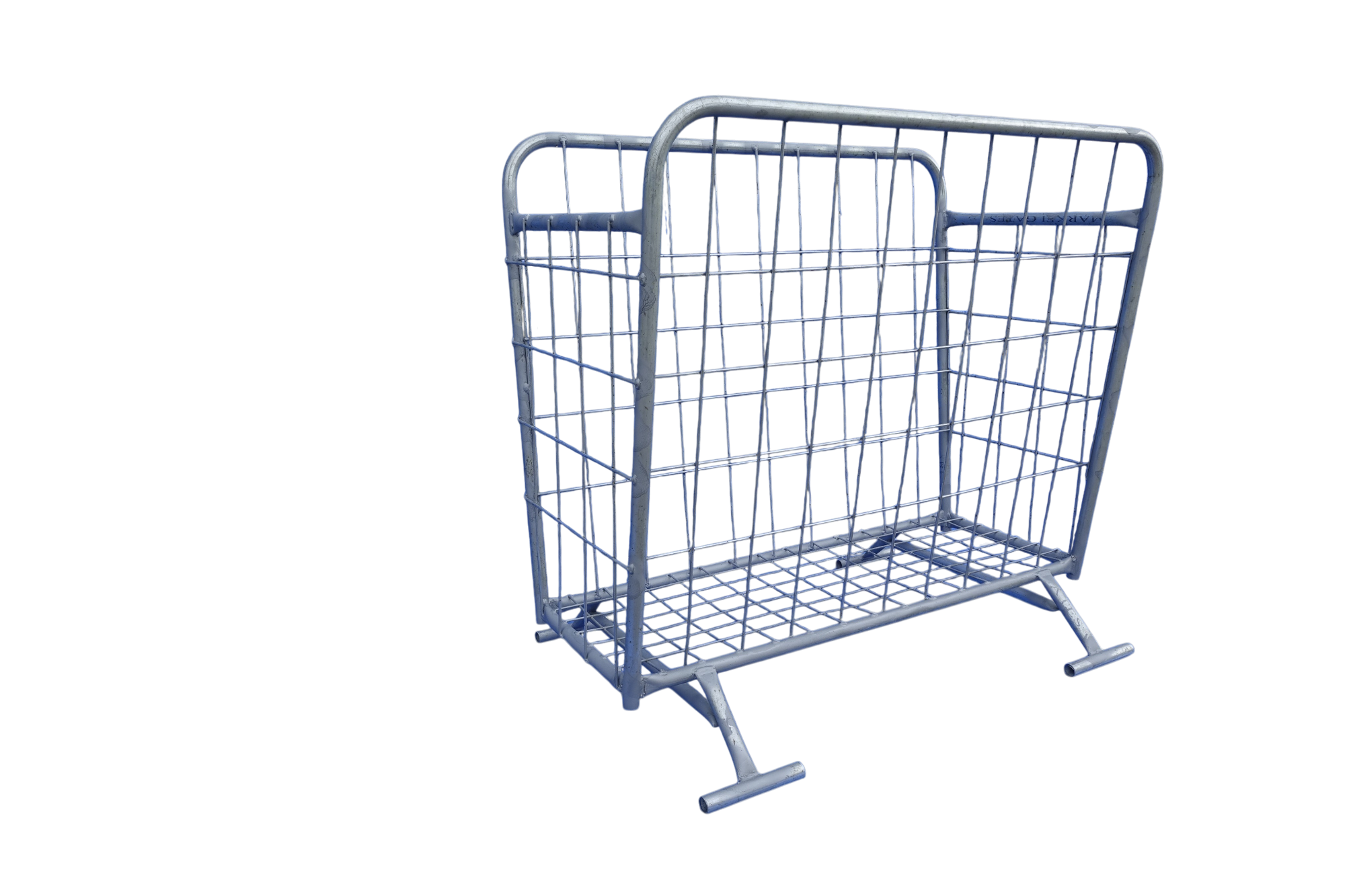

Suitable for alpacas, sheep and llamas
Fits 2 small square bales

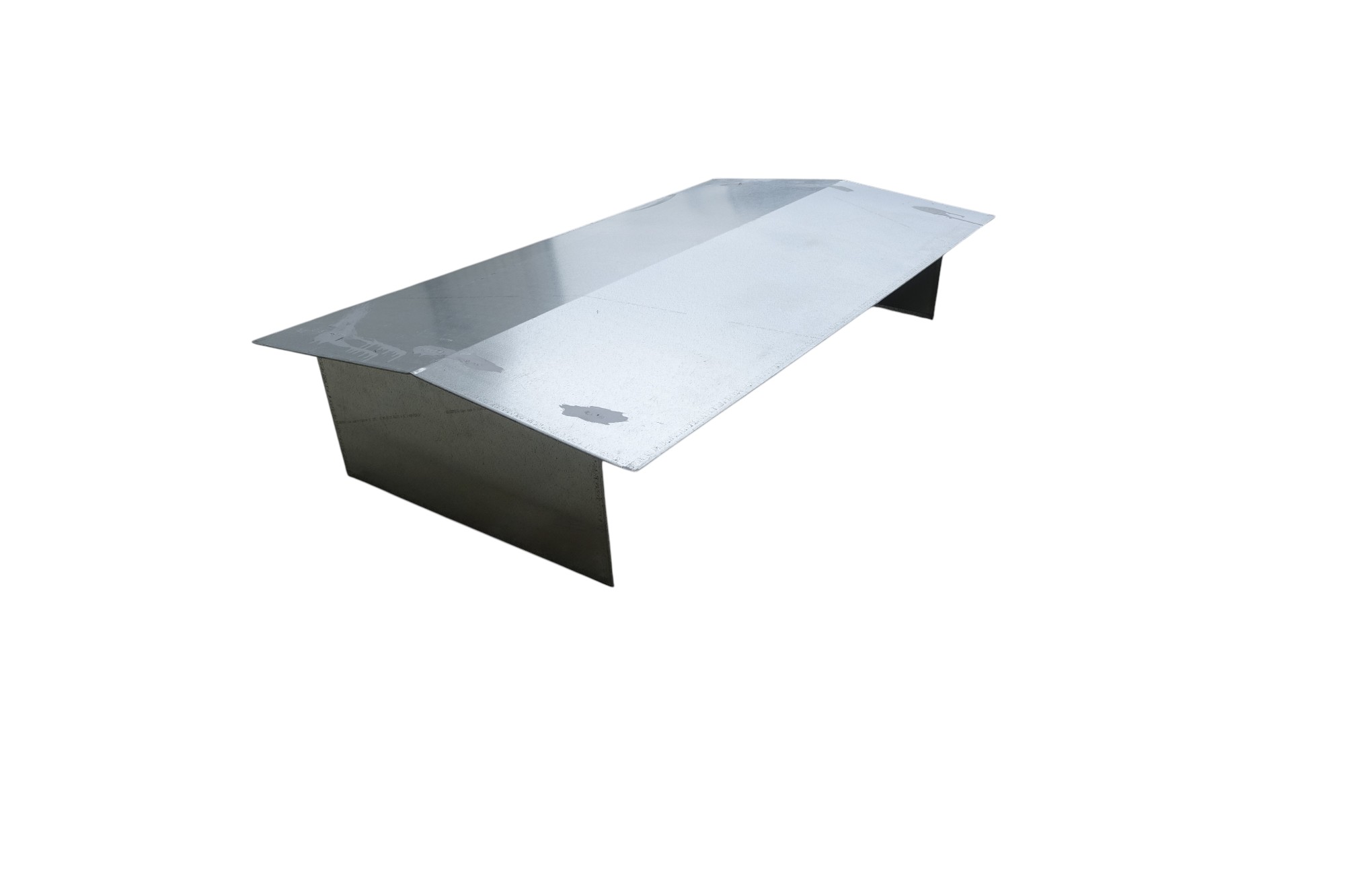

Feeder lid made from stainless steel and fits on top of the feeder
‍
Framing: 20mm gal pipe
Height: 950mm (37.5 inches)
Width: 1100mm (43 inches)
Depth: 590mm (23 inches)
Mesh: 5mm gal wire approximately 100mm x 150mm                                (base mesh is75mm x 50mm)
Lids: all metal, can be lifted off



Non-Standard sizes can be made on request.

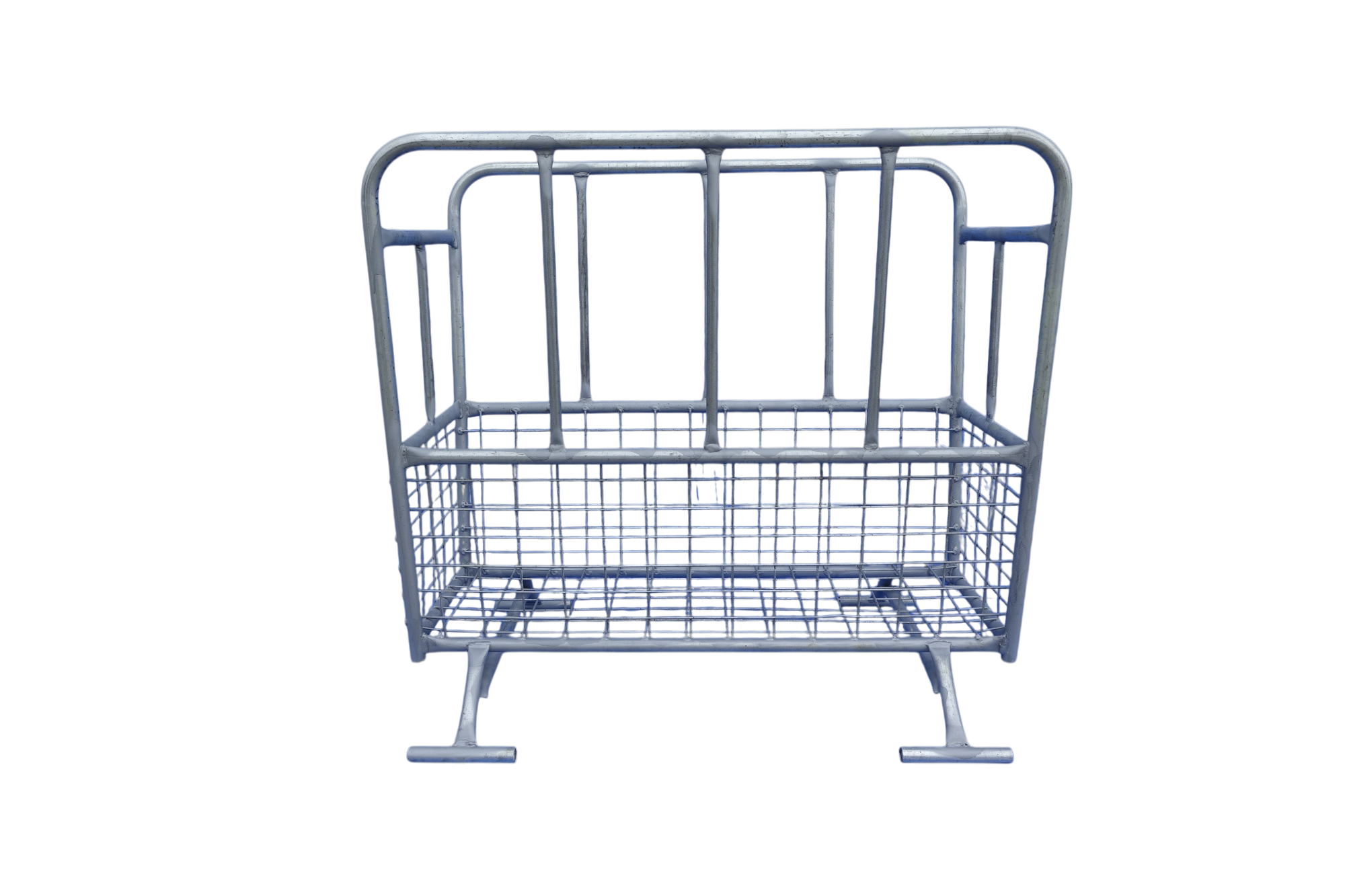

Suitable for calves, goats and small horses
Framing: 20mm gal pipe
Height: 950mm
Width: 1100mm
Depth: 590mm
Mesh:  Base and side mesh is 75mm X50mm                                     Mesh runs upapprox. 300mm high
Bars :  9mm tubing, spacings 250mm-280mm

Lids: all metal, can be lifted off


Non-Standard sizes can be made on request.

Frame: High tensile25mm N.B. grade 350 galvanized frame
Stay:   50mmgalvanized strap


Non-Standard sizes can be made on request.

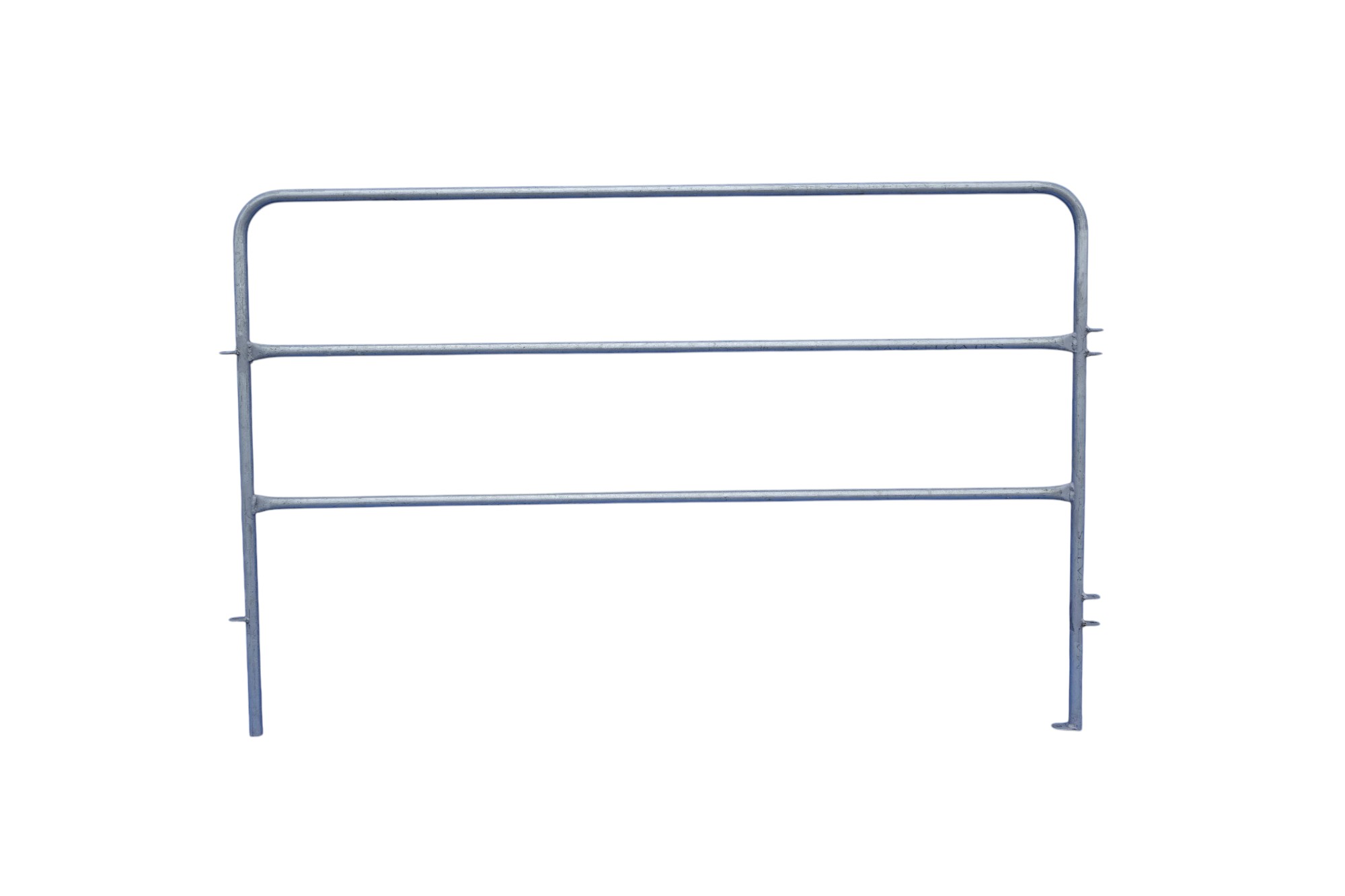

Frame: High tensile 20mm N.B. grade 350 galvanized
            (1.8m x 1.2m hi approx.)

Price includes pins
‍
*Sold in individual panels, square yard (8 panels) or round yard (10 panels)


Non-Standard sizes can be made on request.

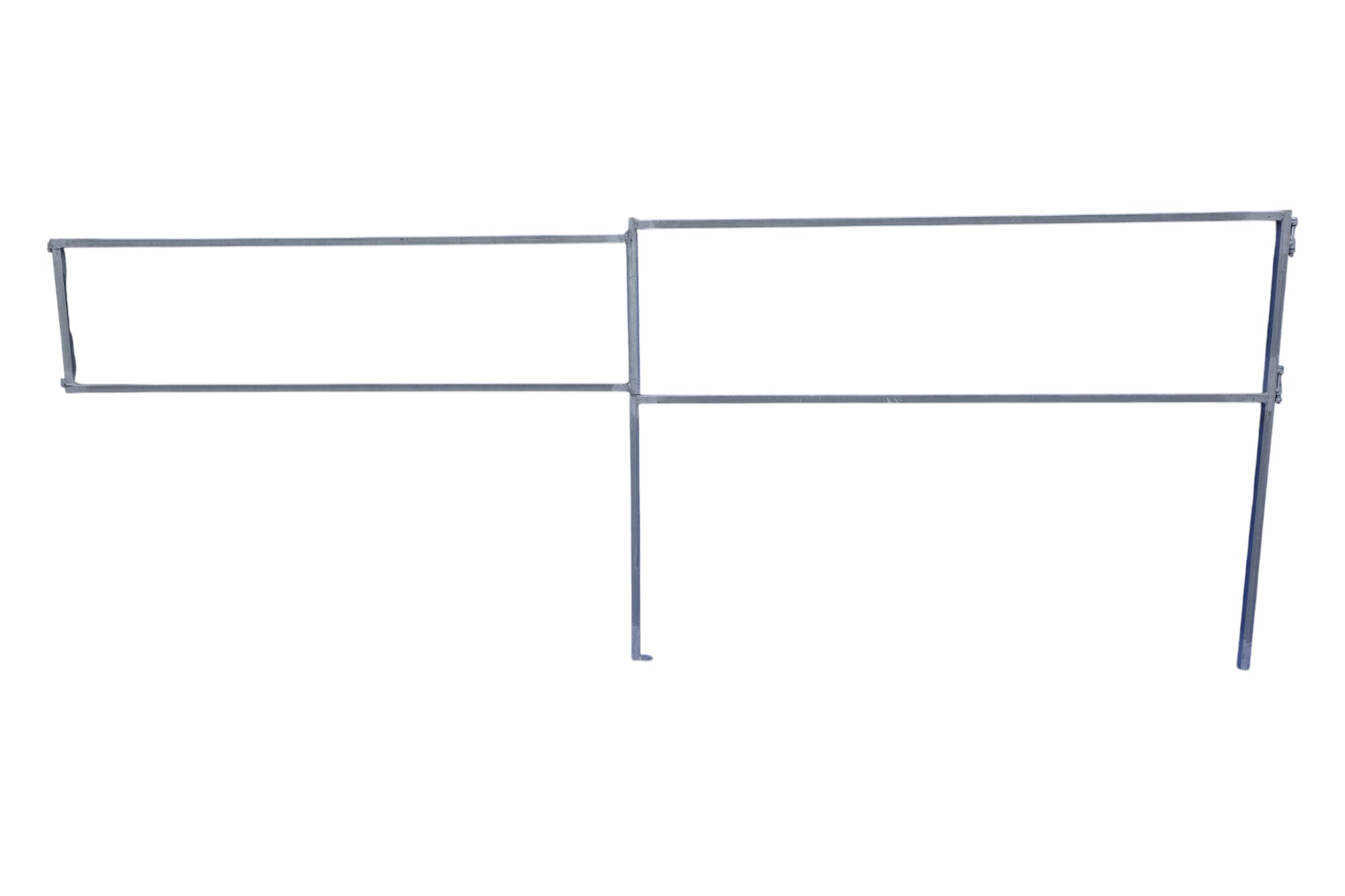

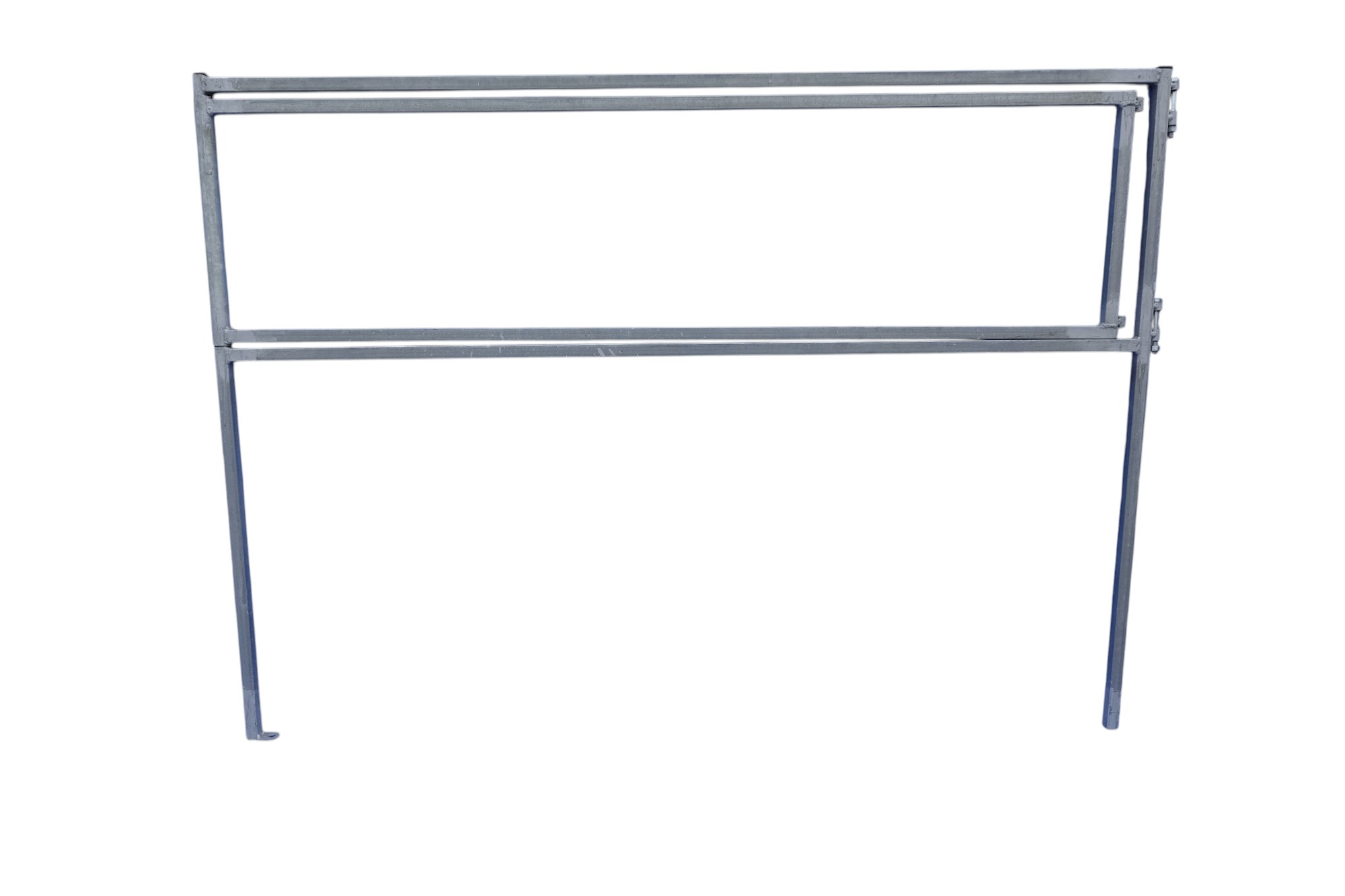

Frame:   25mm +20mm gal RHS
Main panel: 1.3m hi x 1.8m wide
Inside panel: 1.7m wide

Price includes pins

*Sold in individual panels (2 panels), square yard (8 panels) or round yard (10 panels)

*Selling Brackets for side of float (2 brackets + attachments). Each bracket can hold up to 6 RHS panels


Non-Standard sizes can be made on request.

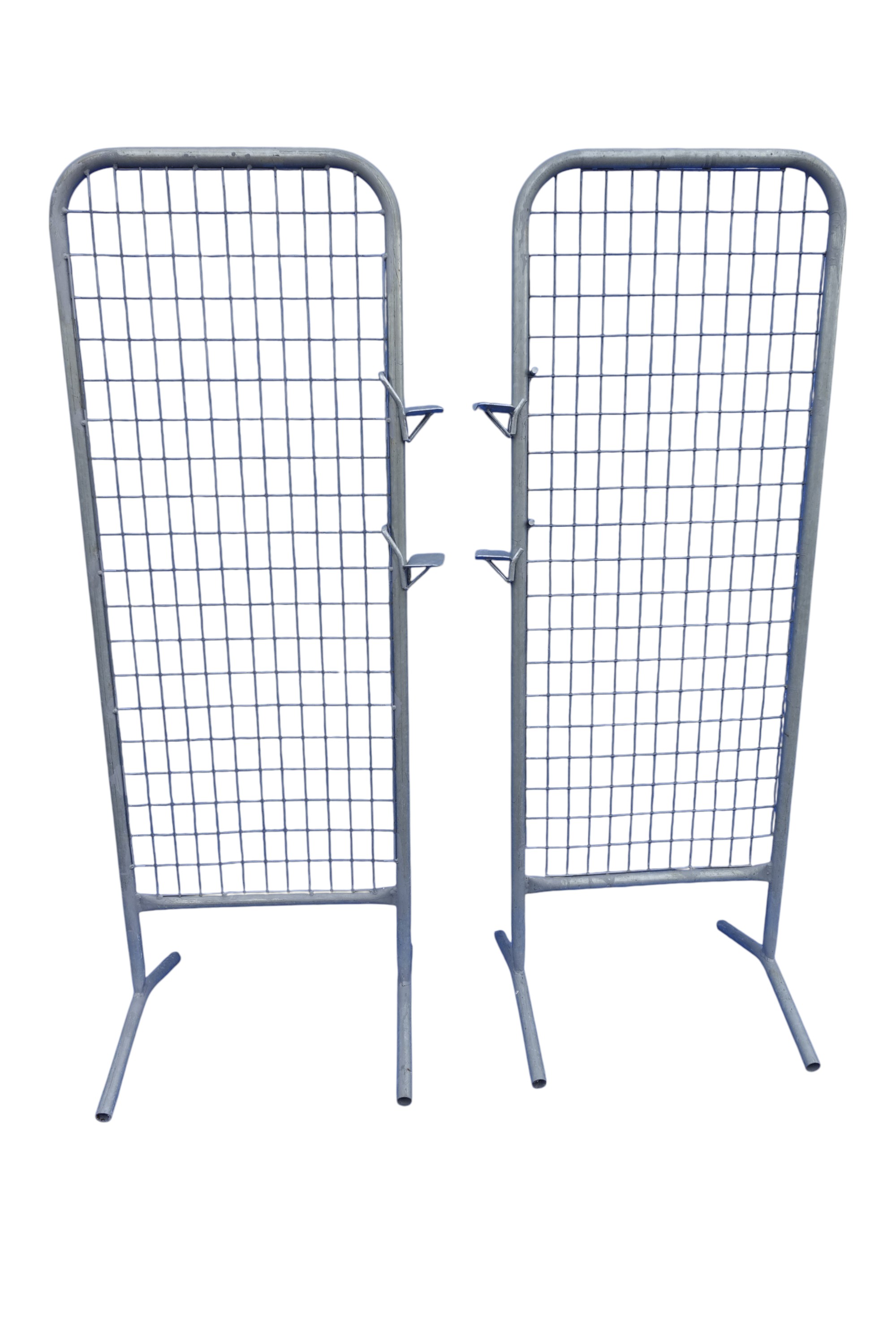

Dimensions
Framing:  50 x 50mm gal box
                 25mm NB gal
Height: 1.9m
Width:  700mm
Leg Span: 600mm

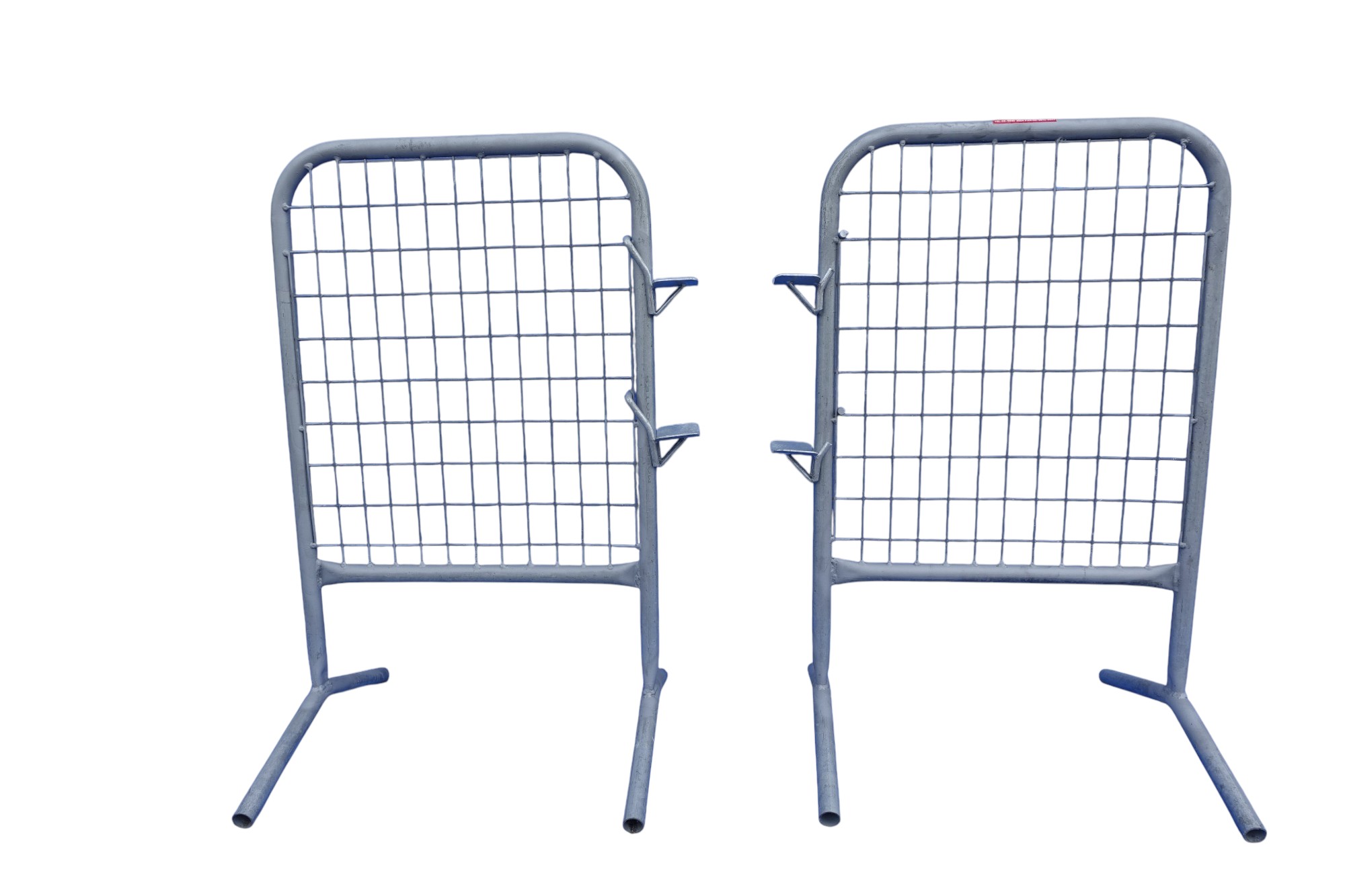

Standard set: 2 jump wings + 4 cups (2 steel and 2 nylon)

Cup options are nylon, steel and breakaway

Keyhole tracking 1.5m available on request

Non-Standard sizes can be made on request.

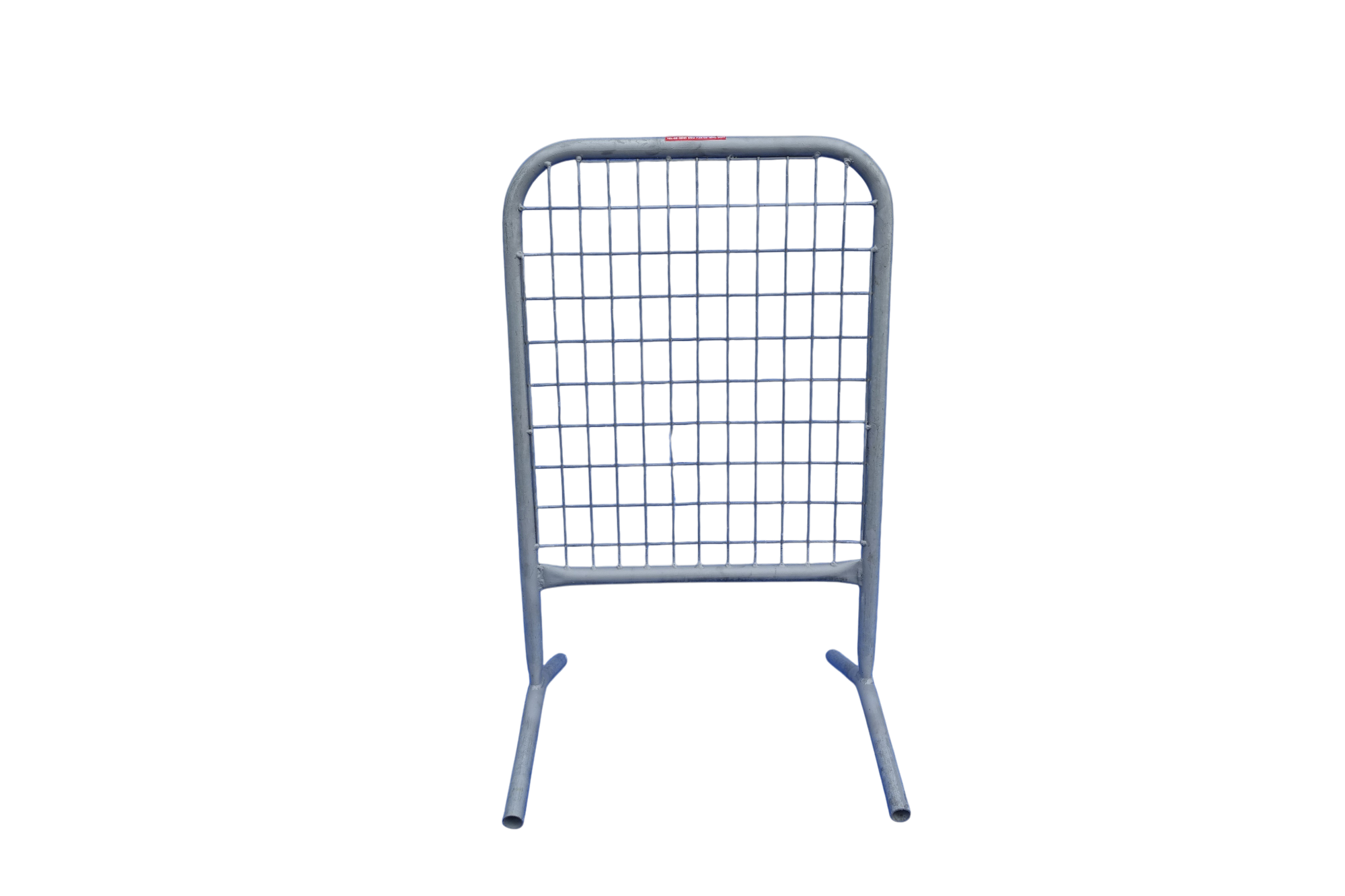

Mesh: 4mm gal wire
Framing: 50mm x 75mm approx
Frame: High tensile 25mm N.B. grade 350 galvanized frame; 2.0mm wall

Standard Set: Set of 2 jump wings + 4 steel cups                                            1.83m x 0.66m approx
‍
Small Set: Set of 2 jump wings + 4 steel cups                                           1.07mx 0.66m approx


Non-Standard sizes can be made on request.

Rings:   2 rings; 1 at top, 1 at bottom
High tensile 25mm N.B. grade 350 galvanized pipe
Mesh :  50mm X 75mm galvanized mesh
Uprights: High tensile 25mm N.B. grade 350 galvanized pipe
Sizes(diameter):  1.8m,  2.0m,   2.1m
Height :  850mm


Non-Standard sizes can be made on request.

Mesh:    4mm gal wire
Frame:  High tensile 32mm N.B.
             Grade350 galvanised frame
Stay: 25mm
Sizes: 50mm x 75mm, 50mm x 50mm



Non-Standard sizes can be made on request.

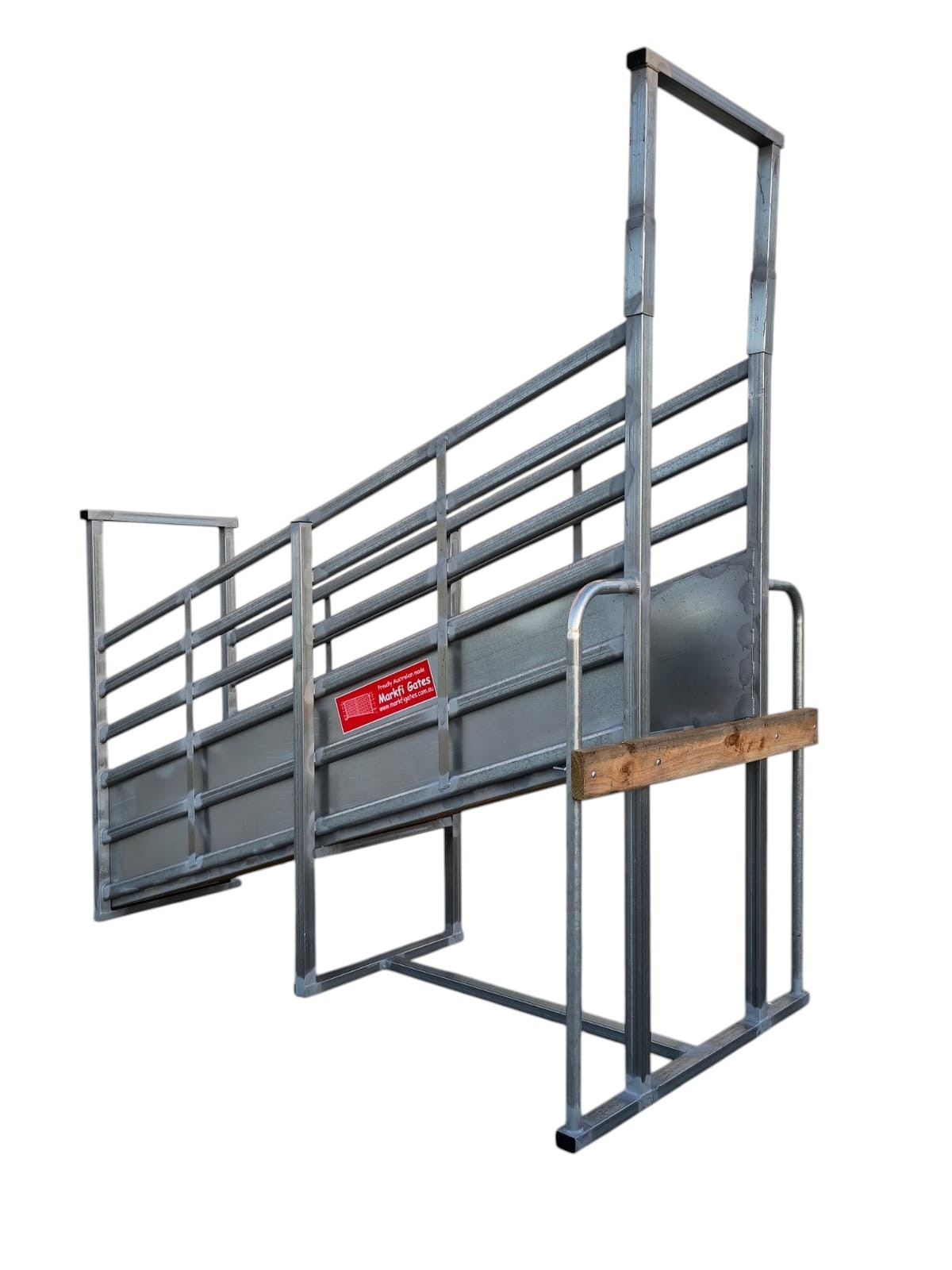

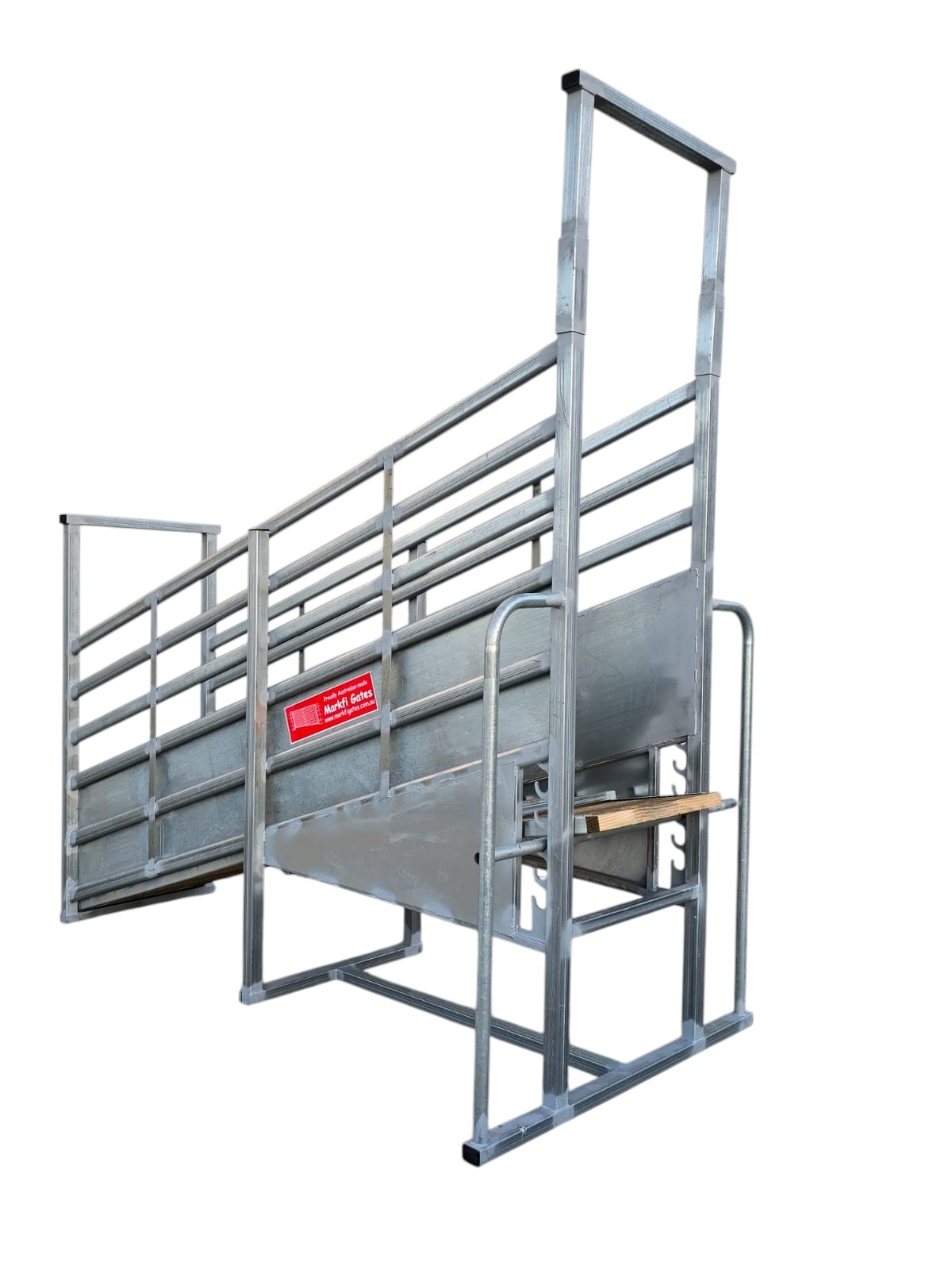

Specifications and Dimensions
Ramp Length:  3.6m
Horizontal Length: 3.43m
Base Width: 1.65m
Height: 2.7m
Ramp Width: 760mm
Loading height: 1.20m

Features·
·       Six oval rails 80 x 40mm @ 2mm thick to minimise animal bruising
·       50mm Treated pine ramp for a moremuted and quieter loading
·       Frame is made from 65/65 RHS @ 2.5mmthick
·       Side panels have 2 x reinforcement straps + 1 reinforcement bar
·       600mm high galvanized sheet @ 1.5mmthick
·       Made in Australia

Specifications and Dimensions
Ramp Length:  3.6m
Horizontal Length: 3.43m
Base Width: 1.65m
Height: 2.7m
Ramp Width: 760mm
Loading height: 1.20m

Features·
·       Six oval rails 80 x 40mm @ 2mm thick to minimise animal bruising
·       50mm Treated pine ramp for a moremuted and quieter loading
·       Frame is made from 65/65 RHS @ 2.5mmthick
·       Side panels have 2 x reinforcement straps + 1 reinforcement bar
·       600mm high galvanized sheet @ 1.5mmthick
·       Made in Australia

TBC

Frame: High tensile 32mm N.B. grade 350 galvanized frame
Height:  1.4m
             6 bar
Stay:     50mm galvanized strap
Latch : welded on as standard

Non-Standard sizes can be made on request.

Frame: 5 bar high tensile 32mm N.B. grade 350 galvanized frame
Height: 1.5m
Stay:     50mmgalvanized strap
Uses:    Allows for uneven ground; hinged access; square pens; round yards; and odd shaped enclosures.


Non-Standard sizes can be made on request.

Panel
Uprights : 50-50 RHS gal
Bars        :  6-bar oval gal rail
                  80mm x 40mm x 1.6mm
Dimensions: 2.1m wide X 1.8m high
Pins       : 2 per panel
Uses     : suitable for cattle and horses
*Sold in packs of 70 or broken packs

Door
Frame : 2.1m wide X 2.2m high
             60-60 RHS gal
Door   : 50-50 RHS gal uprights
             6-baroval gal rail
             1.8mwide X 1.8m high
Pins    : 2 per panel
Use    : suitable for cattle and horses


Non-Standard sizes can be made on request.

Frame: Height 2m;end upright posts 1 x 80mm & 1 x 50mm              N.B.grade 350 galvanized
            Joined by a clamp on top of gate – base set into             concrete
Bars:  Horizontal 6 bar; high tensile 32mm N.B.
Stay:  50mm galvanized strap



Non-Standard sizes can be made on request.

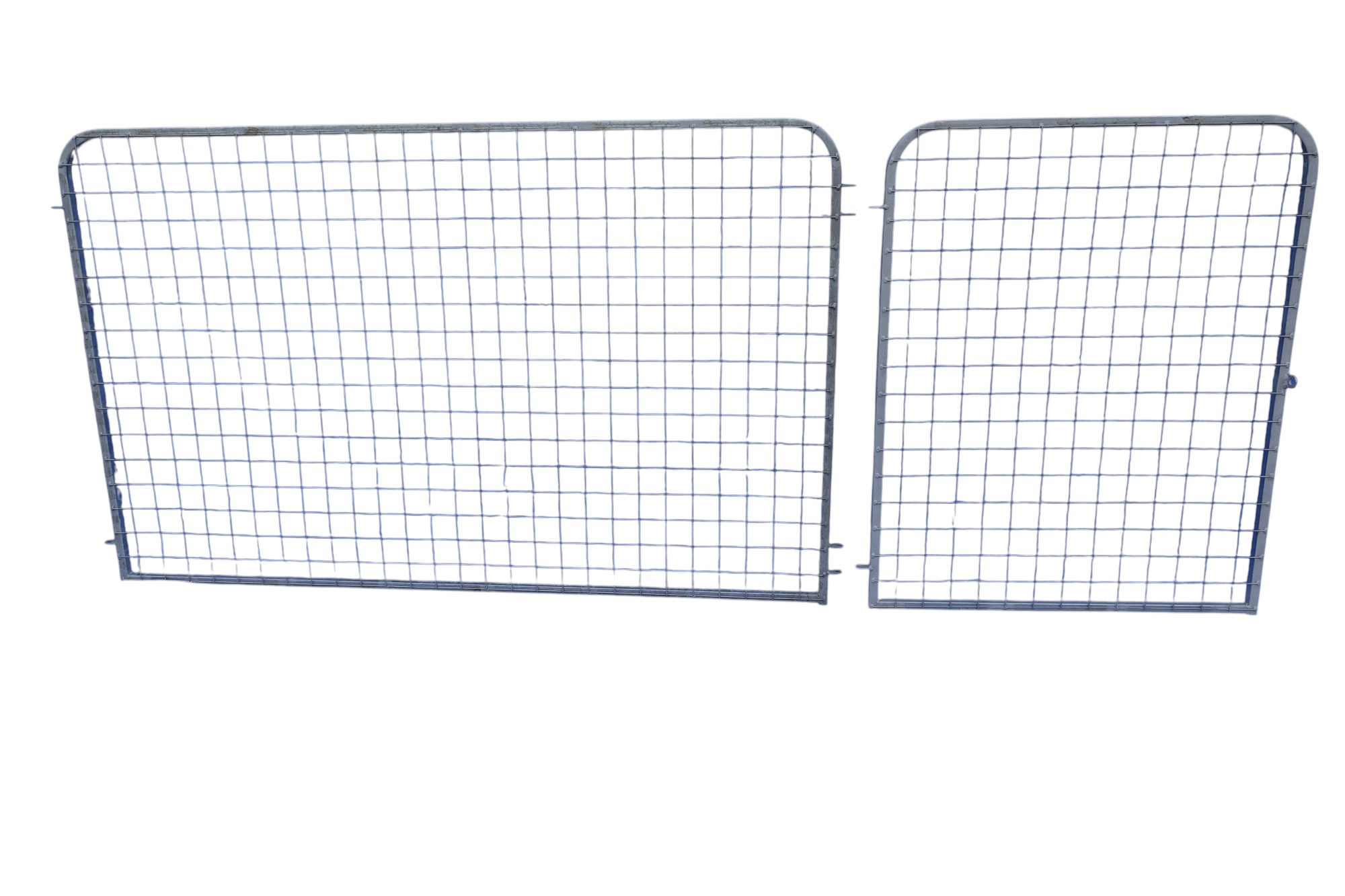

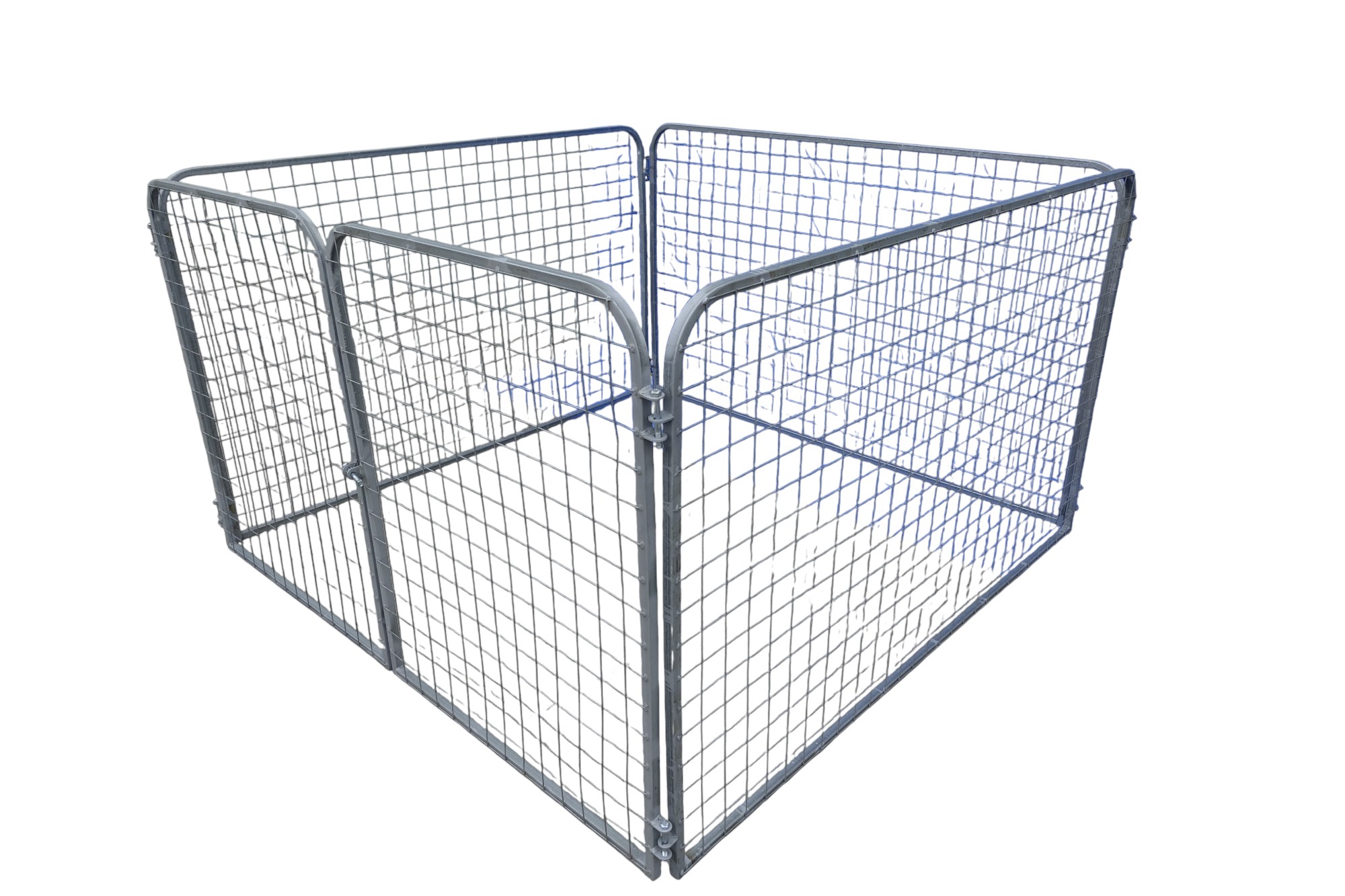

Suitable for alpacas, puppies, to quarantine newborn or young ones

Fits 2 alpacas, light and portable, easy assembly

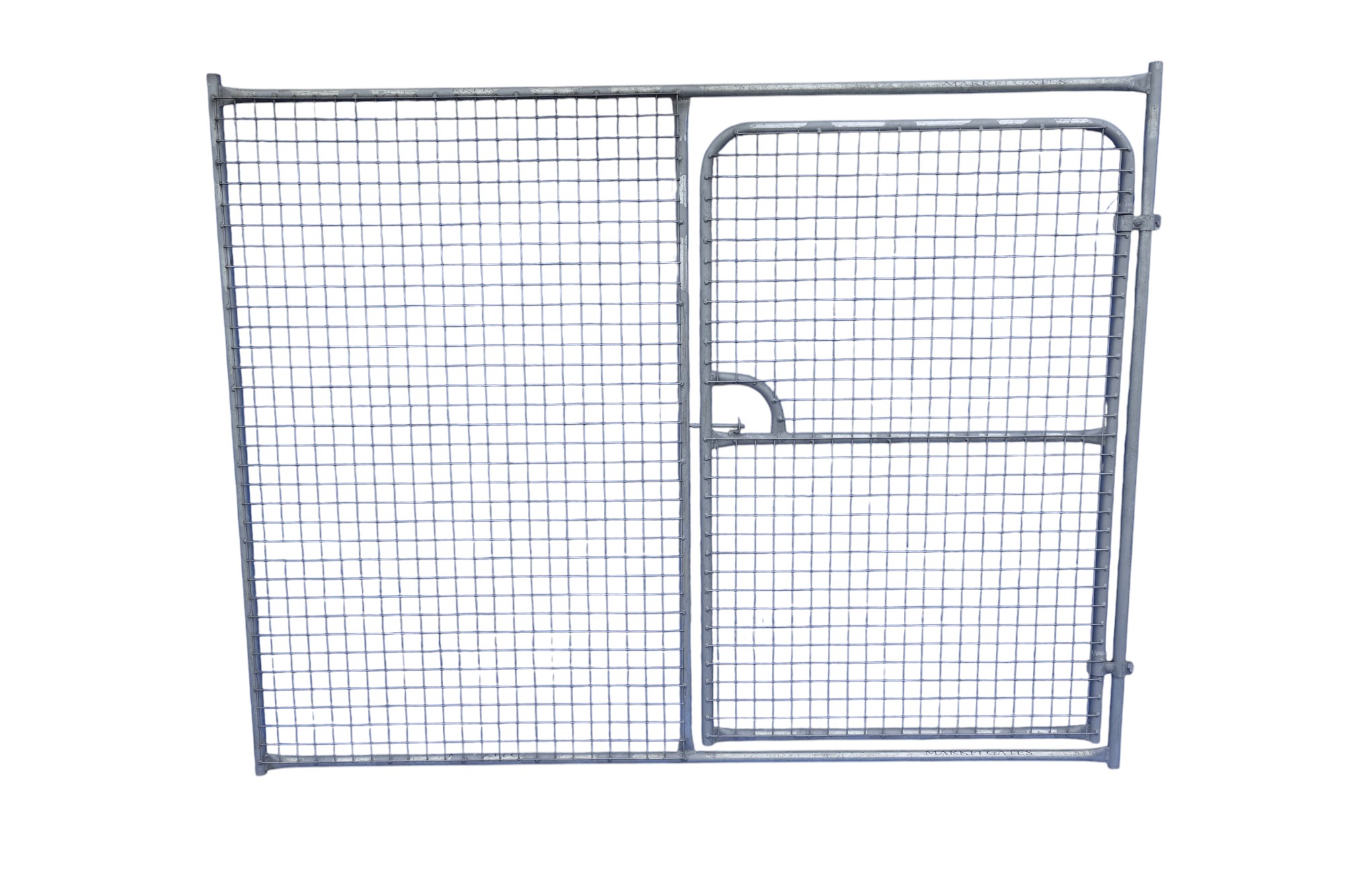

Side Panels
Mesh: 3.15mm gal wire
Frame:  25mm gal rhs
Framing: 75mm x 75mm
Height:  1.3m
Width: 2.1m

Door Panels
Mesh:  3.15mm gal wire
Frame:  25mmgal rhs
Framing: 75mm x 75mm
Height: 1.3m
Width: 1.05m

Mesh: 4mm gal wire, 50mm x 50mm framing.
Frame: High tensile 25 N.B. grade galvanized frame, 2mm wall

Panels are made separate and can be clamped together (clamps included).  They can also be made as one piece on request.

Suitable for alpacas, sheep and llamas
Fits 2 small square bales
Feeder lid made from stainless steel and fits on top of the feeder
‍
Framing: 20mm gal pipe
Height: 950mm (37.5 inches)
Width: 1100mm (43 inches)
Depth: 590mm (23 inches)
Mesh: 5mm gal wire approximately 100mm x 150mm                                (base mesh is75mm x 50mm)
Lids: all metal, can be lifted off

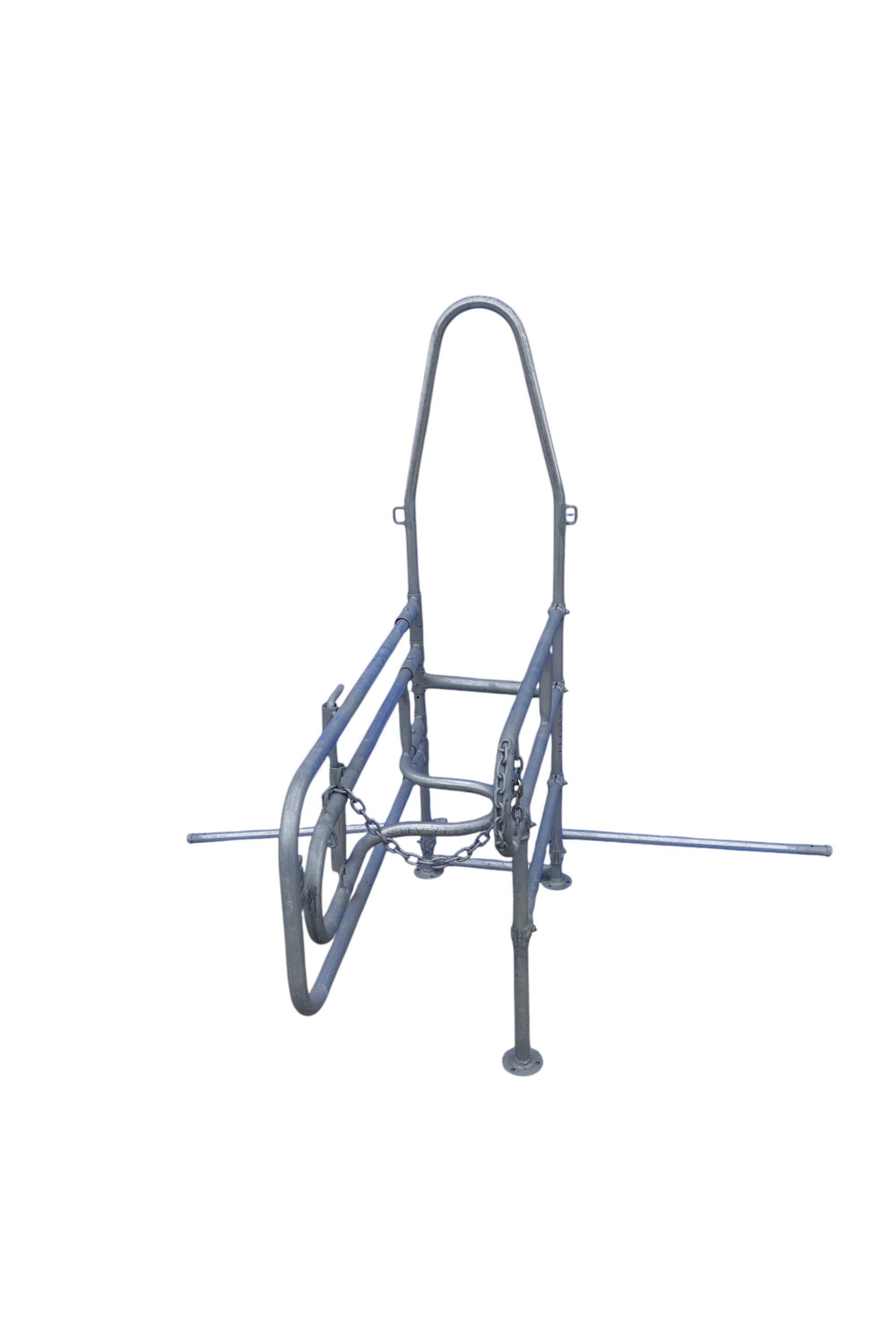

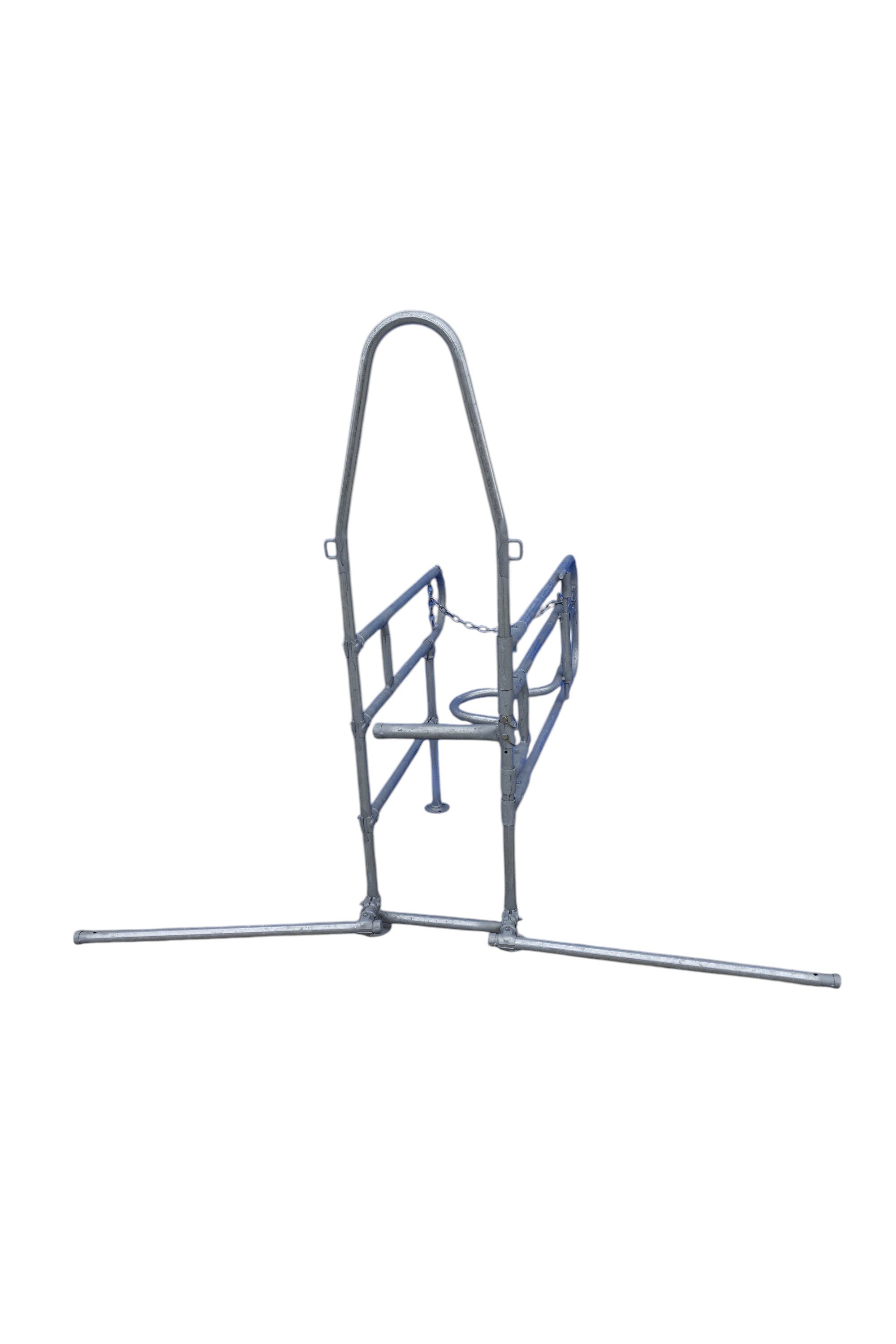

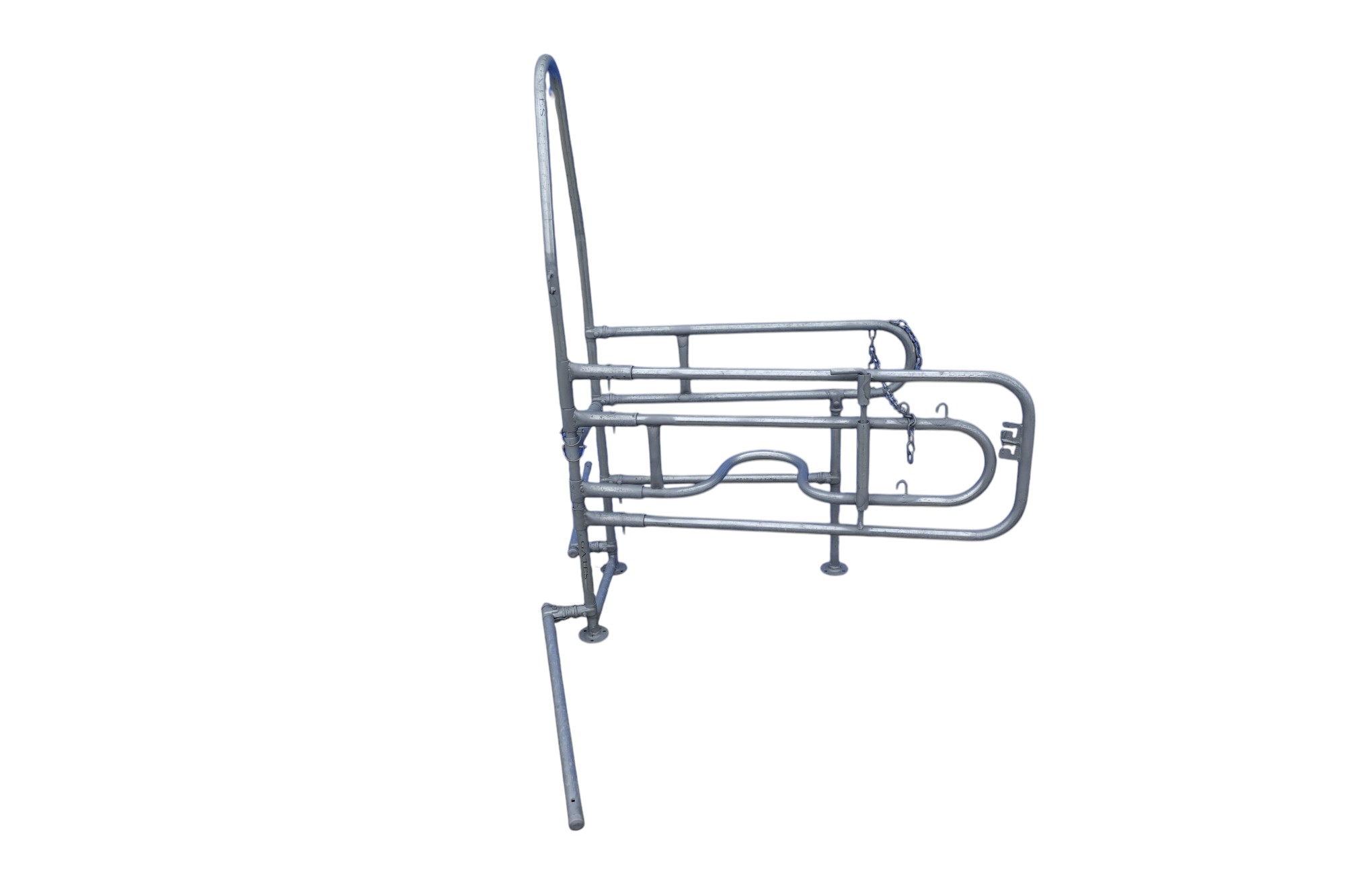

Specifications and Dimensions
Width:  440mm (without stabilisers)                                                          : 2500mm (including stabilisers)
Height: 1700mm
Length: 1300mm
Weight: 30kg approximately
Bellystrap height:  8 different heights                                                                       Minimum: 430mm                                                                       Maximum: 600mm
Features
·       Belly loop design is gentle on alpaca’s body and prevents sitting while performing husbandry
·       Crush can be bolted to wood or concrete floor
·       Stabilisers can be used to secure crush to soil or barn floor
·       Crush includes 2 arms : Race Arm and Under Belly Loop Arm
·       Available to be flat packed and delivered Australia wide
·       Comes with easy to assemble instructions
·      Made from 25mm nb galvanised pipe

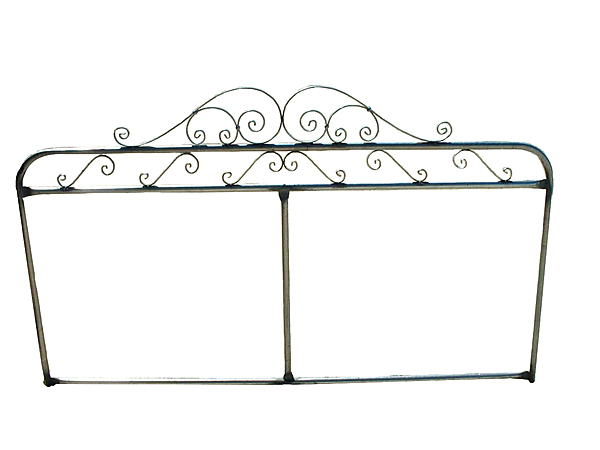

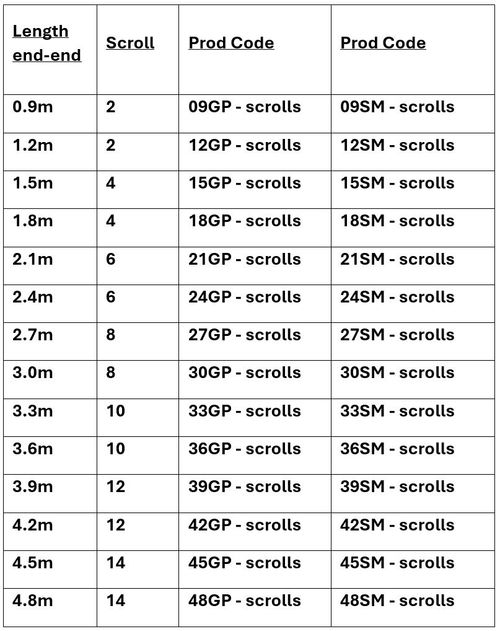

Scrolls: Underneath top bar
Number scrolls depends on gate length
Mesh:
    GP Mesh: 250mm x 100mm x 5mm thick
    SM Mesh: 50mm x 75mm x 4mm thick
Frame: High tensile 25 N.B. grade galvanized frame, 2mm wall

Scrolls design can be changed and modified on request.

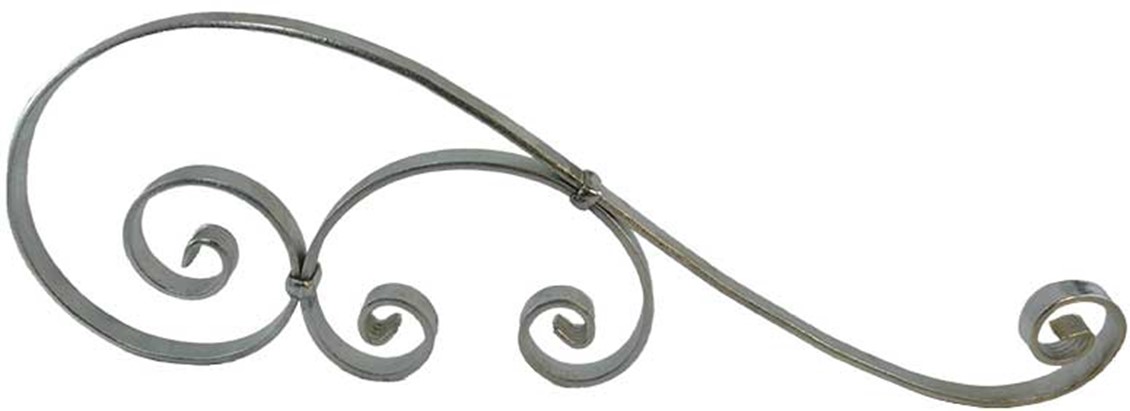

Large Scroll: 730mm long x 240mm high x 20mm wide x 6mm thick

Small Scroll: 270mm long x 90mm high x 20mm wide x 6mm thick
‍

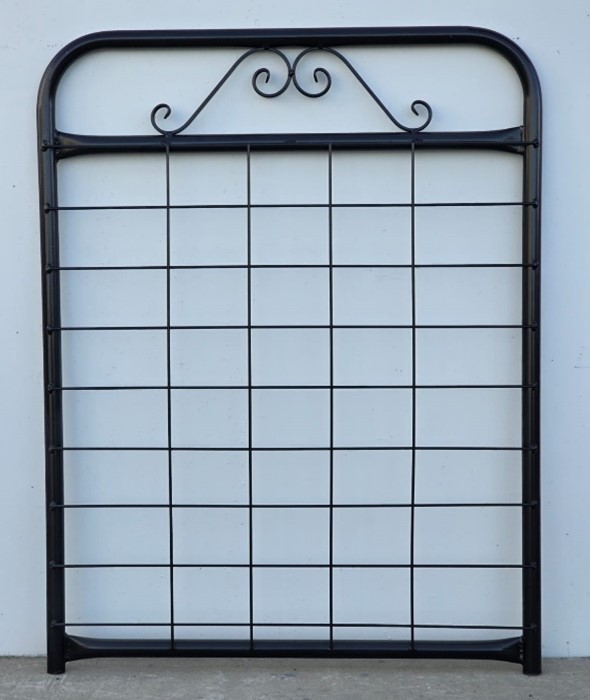

Markfi Gates can powdercoat most products to enhance the appearance of the gate. We utilize quality powder coating brands such as Dulux and Interpon.

Markfi Gates has a variety of applications and styles that can be customised to suit your customer needs. We can add decorative scrolls based on the customer's preference and requirements.

The gate will be wrapped up securely in bubble wrap during transport to ensure the gate arrives safely.
‍
Please contact us for a quote. Price is calculated on the square meterage of the product.

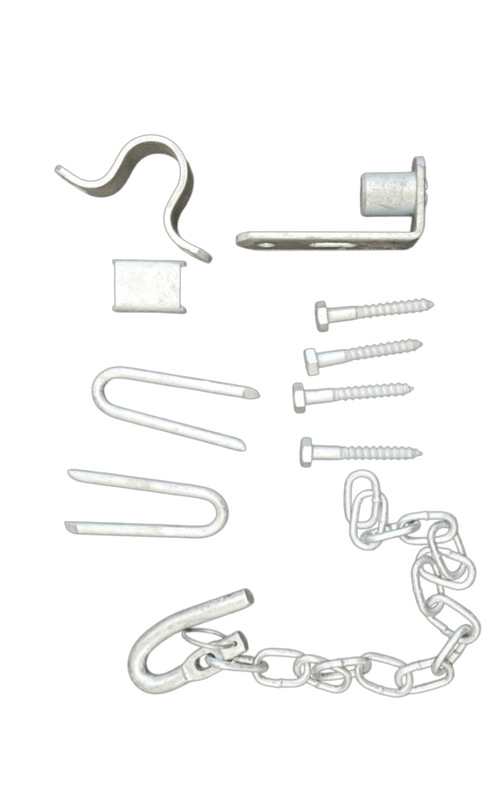

FGP1 - 25mm N.B.

FGP3 - 25 mm N.B.

FGP189 - 25 mm N.B. (350mm post)

FGP191 - 25 mm N.B. (400mm post)

HSLF20 - 20 mm N.B.
HSLF25 - 25 mm N.B.
HSLF32 - 32 mm N.B.

LBG20 - 20 mm N.B.
LBG25 - 25 mm N.B.
LBG32 - 32 mm N.B.

TWC25 - 25mm/32mm N.B

GB25 - Bolt through
GB32 - Clamp On

Prices can be provided on request.
